Rotary drilling rig
Rotary drilling rig

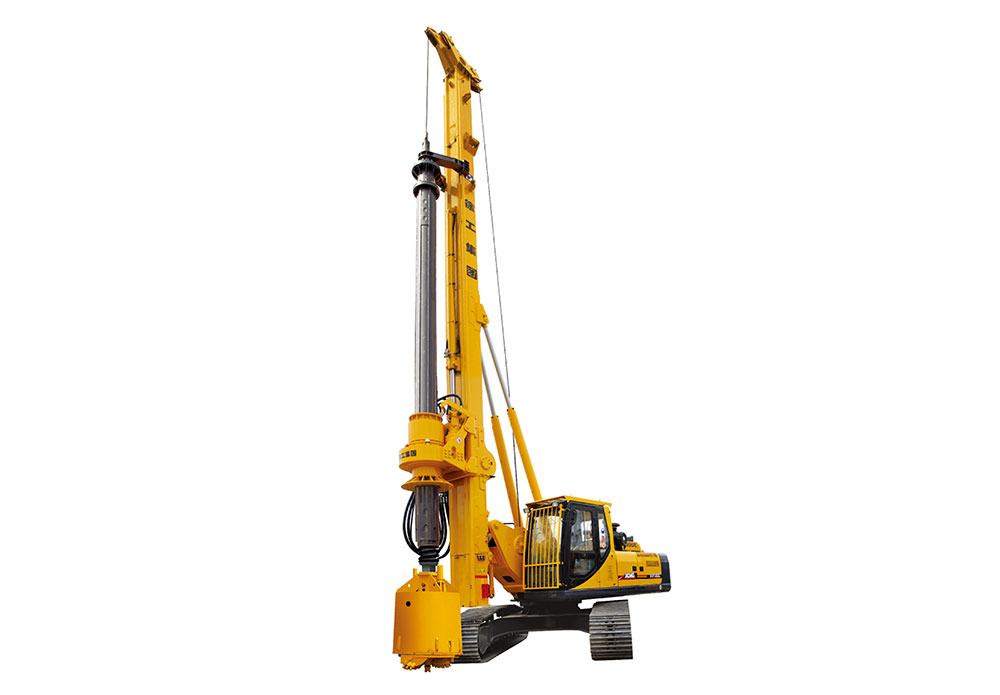

XRL100
- FEATURES
- PARAMETERS
The equipment adopt the wheel type chassis,can be transported with drill rod,made the transportation easily and economically;
Cummins electronic control turbo supercharged engine meeting Euro Ⅲ emission standard,saving energy,envioronmental protection and strong power;
The type A leg make the equipment operate easily,and improved the ability of anti-distortion;
With the hydraulic pressure system adopted the technique of load sensor,which can increase the efficiency of hydraulic system and save energy;
The double protection system of aboard rotary make the construction more safer;
The patented parallelogram articulated structure actuailizes a wider work rang.The highly strengthened box-type steel structure design makes the mast of highly-righly and anticontored,therefore the drill accuracy is heightened;
Standard centralized lubricating system,allowing easier maintenance.
| Description | Unit | Date | |
|---|---|---|---|
| Max. Drilling Diameter | mm | Æ1400 | |
| Max. Drilling Depth | m | 25 | |
| Engine | Model | / | CUMMINS QSB4.5-C155 |
| Rated Power | kW | 116/2000 | |
| Rotary Drive | Max. output torque | kN .m | 100 |
| Rotary speed | r/min | 9～40 | |
| Pull-Down Cylinder | Max.pull-down piston push | kN | 100 |
| Max.pull-down piston pull | kN | 100 | |
| Max.pull-down piston stroke | mm | 2000 | |
| Main Winch | Max.pulling force | kN | 100 |
| Max. single-rope speed | m/min | 70 | |
| Diameter of the steel wire rope | mm | 20 | |
| Auxiliary Winch | Max.pulling force | kN | 60 |
| Max. single-rope speed | m/min | 54 | |
| Diameter of the steel wire rope | mm | 16 | |
| Drilling mast | Left/right inclination of mast | ||
| Front inclination of mast | ° | ±5 / 5 | |
| Rotary table slewing angle | ° | 240 | |
| Hydraulic System | Working pressure | MPa | 35 |
| Traveling | Max. traveling speed | km/h | 78 |
| Min.turning diameter | m | 21 | |
| Min.ground claerance | mm | 340 | |
| Approach angle | ° | 21 | |
| Departure angle | ° | 18 | |
| Max.grade ability | % | 30 | |
| Overall Drilling Weight | t | 32 | |
| Dimension | Working condition(L × W × H) | mm | 9900×4600×14640 |
| Transportation condition(L × W × H) | mm | 10740×2500×4380 | |
