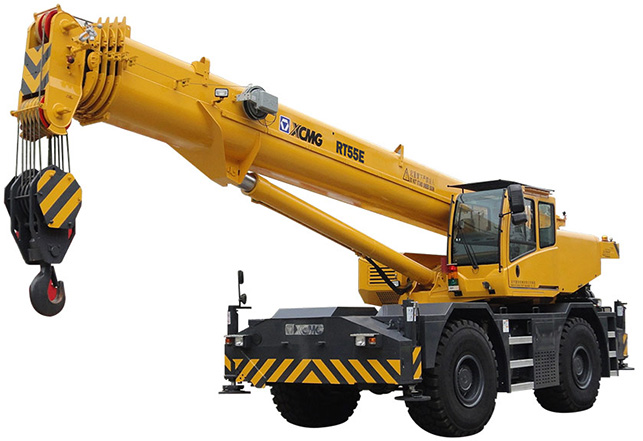

RT55E

RT55E is a high-end model developed by XCMG and an experienced R&D institute in Europe, which has been approved by CE in Europe. The product is equipped with two-axle loading chassis and has two types of driving model, four types of turning models and back-and-forward driving function. The product has five sections of quadrangular great circle main doom, H-type outrigger as well as combined self-removal and installation counterweight. It has three types of operation models such as operation with the support of outrigger, operation with the support of tire and hanging when driving. It is widely used in oil field, mine, road and bridge construction, warehousing base and other construction sites.


Product Highlights:

Technology from Europe, Performance in Leading Level

The product is developed by China and Germany with delicate design. The product has strong comprehensive lifting power with its 38.2m main doom and 17m auxiliary boom under the same boundary conditions.


Maneuvering and Flexible, Quick and Efficient

The max speed reaches 25km/h (37km/h for option) and the max gradeability is 55% and the min. turning radius is 5.7m. All these three factors make it flexible.

The product is equipped with great power system, specialized cross-country pattern tire and skid resisting differential locking gear. All these three factors make it drive over all kinds of road easily.


Safe and Reliable, No Worry to Handle

The product is equipped with lifting protection control system in case of overload, over-retracting and over-stretching as well as exclusive technology in this field like rear axle-wheel automatic return-control system and safety-driving automatic protection system. All these elevate its safety performance largely.

The product is equipped with top features in this field, professional matching upgrading and systematic evaluation test. And it has passed test like driving 4,000km and 10,000 times hanging. Both ensure its reliability.


Economic and Environment Protection, with Cost Saving

The product is equipped with optical matching power transmission system and torque converter with lockout function, which decrease the oil consumption over 20% at high speed.

The flow distribution management technology makes the system efficient; and the gravity drop luffing system needs no extra power and save the oil consumption.


Comfortable to Handle, Convenient to Operate

The product is equipped with full hydro-steering control system and automatic manual gear box, which make it easy to handle.

The product is equipped with humanized climb ladder, maintenance access and control layout. And the product is equipped with professional man-machine engineering simulation analysis, exquisite man-machine interface and stand-alone fault diagnose function. It is comfortable to handle and convenient to operate.


Project
Measurements Parameters
Length of Entire Vehicle
Width of Entire Vehicle
Height of Entire Vehicle
Wheel Base
Wheel Track
Weight Parameters
Gross Vehicle Weight When Driving
Axle Load
Kinetic Paremeter
Engine Type
Engine Rated Power(kw/
Engine Max Torque(N.m/
Driving Parameters
Driving
Max Travel Speed
Min Travel Speed
Swerve
Min Turning Radius
Head Min. Turning Diameter
Max Gradeability
Min. Ground Clearance of Machine
Approach Angle
Departure Angle
Braking Distance
Fuel Consumption per 100kms
Major Performance Parameters
Max. Rated Lifting Capacity
Min. Rated Range
Max. Load Moment of Basic Jib
Radius of Gyration of Turntable Tail
Outrigger
Longitudinal
Horizontal
Max. Lifting Height
Basic Boom
Longest Main Boom
Longest Main Boom + Auxiliary Boom
Boom Length of Crane
Basic Boom
Longest Main Boom
Longest Main Boom + Auxiliary Boom
Longest Main Boom + Auxiliary Boom + Extension
Working Speed
Max. Slewing Speed
Lifting Speed
Main Hoisting Mechanism
Auxiliary Hoisting Mechanism
Stretching and Retracting Time of Crane Boom
Full Stretching
Full Retracting
Luffing Time
Full Travel Boom Lifting
Full Travel Boom Lowering
Outrigger Extension and Retract
Horizontal
Stretching at the Same Time
Retracting at the Same Time
Vertical
Stretching at the Same Time
Retracting at the Same Time
Unit
(mm)
(mm)
(mm)
(mm)
(mm)
(kg)
(kg)
-
(kw/(r/min))
(N.m/(r/min))
(km/h)
(km/h)
(m)
(m)
(%)
(mm)
(°)
(°)
(m)
(L)
(t)
(m)
(kN·m)
(mm)
(m)
(m)
(m)
(m)
(m)
(m)
(m)
-
-
(r/min)
(m/min)
(m/min)
(s)
-
(s)
(s)
(s)
(s)
-
-
Parameter
12032
2980
3530
3741
2330
38565
(Front Axle)18703 (Rear Axle)19862
QSB6.7
149
740
25
2
11.4
-
55
460
25.8
21.8
9
-
55
2.5
1690
4090
7
7/5.6
9.9
37.9
53
10.3
38.2
55.2
-
2
130(Unload)
130(Unload)
140
-
70
-
40
30
55
40
