Rough terrain forklift
Rough terrain forklift

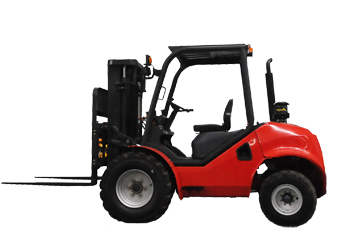

CPRT18
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| CPRT18(Diesel) | ||
| Item | Unit | Parameters |
| Rated capacity | kg | 1800 |
| Load centre | mm | 500 |
| Lift height | mm | 3000 |
| Free lift height | mm | 105 |
| Fork sizeL×W×T | mm | 1070x100x35 |
| Fork regulating range Min./Max. | mm | 200-1310 |
| Mast tilt angle F/R | Deg | 10°/12° |
| Front overhang | mm | 509 |
| Rear overhang | mm | 520 |
| Min. ground clearance | mm | 250 |
| Length to face of fork (without fork) | mm | 2910 |
| Overall width | mm | 1440 |
| Mast lowered height | mm | 2148 |
| Mast extended height (with backrest) | mm | 4150 |
| Overhead guard height | mm | 2256.5 |
| Turning radius(outside) | mm | 2840 |
| Min. right angle stacking aisle width (add load length and clearance) | mm | 4760 |
| Travel(Unladen/Laden) | Km/h | 20/18 |
| Lifting(Laden) | mm/s | 590 |
| Lowering(Laden) | mm/s | 450 |
| Max. Drawbar pull(Laden/unladen) | KN | 13 |
| Max. Gradeability(Laden) | ％ | 20 |
| Tyre front | 12-16.5-12PR | |
| Tyre Rear | 27×10-12-12PR | |
| Tread front | mm | 1125 |
| Tread Rear | mm | 1185 |
| Tyre pressure front | bar | 620 |
| Tyre pressure rear | bar | 650 |
| Seat to ceiling inside height | mm | 1025 |
| Wheelbase | mm | 1880 |
| Self weight | kg | 3700 |
| Battery(Voltage/Capacity) | V/Ah | 12/90 |
| Engine Model | 4TNE98-BQFLC | |
| Engine Manufacture | YANMAR | |
| Rated output/r.p.m. | kw | 42.1/2300 |
| Rated torque/r.p.m. | N.m | 186-206/1700 |
| No. of cylinder | 4 | |
| Bore×Stroke | mm | 98×110 |
| Displacement | L | 3.318 |
| Fuel tank capacity | L | 55 |
| Transmission Manufacture | China | |
| Type | YQXD30-XH | |
| Stage F/R | one / one | |
| Operating pressure(For attachments) | Mpa | 16.5 |
| Min. right angle stacking aisle width (add load length and clearance) | mm | 2840 |
