Rough terrain forklift
Rough terrain forklift

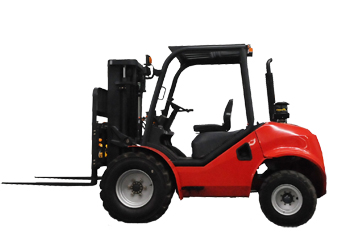

CPRT25
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| CPRT25(Diesel) | ||
| Item | Unit | Parameters |
| Rated capacity | kg | 2500 |
| Load centre | mm | 500 |
| Lift height | mm | 3000 |
| Free lift height | mm | 160 |
| Fork sizeL×W×T | mm | 1070x122x40 |
| Fork regulating range Min./Max. | mm | 250-1160 |
| Mast tilt angle F/R | Deg | 10°/12° |
| Front overhang | mm | 586 |
| Rear overhang | mm | 520 |
| Min. ground clearance | mm | 270 |
| Length to face of fork (without fork) | mm | 2946 |
| Overall width | mm | 1557.5 |
| Mast lowered height | mm | 2265 |
| Mast extended height (with backrest) | mm | 4175 |
| Overhead guard height | mm | 2256.5 |
| Turning radius(outside) | mm | 2870 |
| Min. right angle stacking aisle width (add load length and clearance) | mm | 4726 |
| Travel(Unladen/Laden) | Km/h | 20/18 |
| Lifting(Laden) | mm/s | 570 |
| Lowering(Laden) | mm/s | 600 |
| Max. Drawbar pull(Laden/unladen) | KN | 17 |
| Max. Gradeability(Laden) | ％ | 20 |
| Tyre front | 12-16.5-12PR | |
| Tyre Rear | 27×10-12-12PR | |
| Tread front | mm | 1250.5 |
| Tread Rear | mm | 1205 |
| Tyre pressure front | bar | 680 |
| Tyre pressure rear | bar | 650 |
| Seat to ceiling inside height | mm | 1010 |
| Wheelbase | mm | 1880 |
| Self weight | kg | 4465 |
| Battery(Voltage/Capacity) | V/Ah | 12/90 |
| Engine Model | 4TNE98-BQFLC | |
| Engine Manufacture | YANMAR | |
| Rated output/r.p.m. | kw | 42.1/2300 |
| Rated torque/r.p.m. | N.m | 186-206/1700 |
| No. of cylinder | 4 | |
| Bore×Stroke | mm | 98×110 |
| Displacement | L | 3.318 |
| Fuel tank capacity | L | 55 |
| Transmission Manufacture | China | |
| Type | YQXD30-XH | |
| Stage F/R | one / one | |
| Operating pressure(For attachments) | Mpa | 20 |
| Min. right angle stacking aisle width (add load length and clearance) | mm | 2615 |
