Skid steer loader

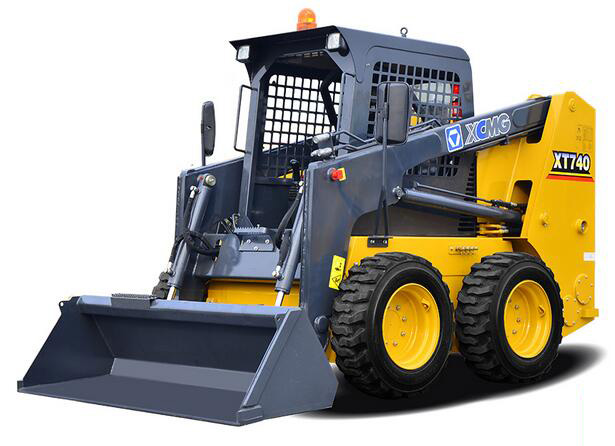

XT740

REQUEST A QUOTE

You have choose: Skid steer loader - XT740

See the verification code Click refresh!

BROCHURE DOWNLOAD|SALES NETWORK

  • FEATURES
  • PARAMETERS
XT740

1,Reliable and durable frame work prolong the machine using life.
2,The original imported engine generates super power and low exhaust,which makes the macine environmental.
3,Optimum hydraulic system design grantee efficient work.
4,The integral FOPS & ROPS and human-engineering designed cabin makes work comfortable.
5,Adopting internationally univeral quick coupler can make changing attachments in few minutes.
6,Convenient maintenance.


Overall dimentions L×W×H

3272mm×1600mm×2025mm
Operating weight3200kg
Tires10-16.5NHS 10RP
bucket capacity0.42m3
Rated load720kg
Dumping clearance2340mm
Dumping reach495mm
Raising time<5s
Total cycling time<10s
breakout force20KN
wheel base996mm
tread1300mm
engineXinchai
model
rated power40kw
rated speed2800r/min
traveling speed13.6km/h
