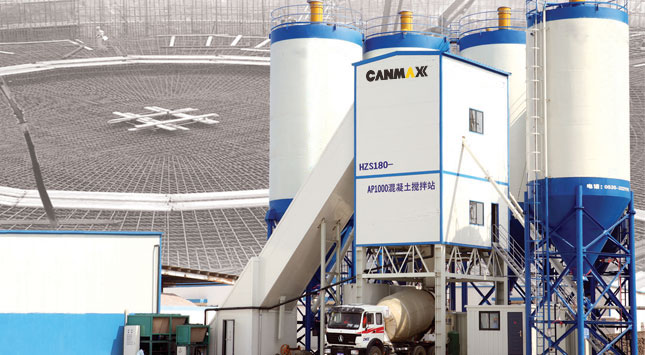

Belt Conveyor & Lifting Hopper
REQUEST A QUOTE
- FEATURES
- PARAMETERS
Belt Conveyor Concrete Mixing Plant
| Model | HZS60 | HZS90 | HZS120 | HZS180 | HZS200 | ||
| Theoretical productivity | m3/h | 60 | 90 | 120 | 180 | 200 | |
| Mixer nominal capacity | m3 | 1 | 1.5 | 2 | 3 | 4 | |
| Aggregate bin: quantity and capacity | m3 | 3×12 | 4×12 | 4×15 | 4×25 | 4×30 | |
| Max. weighing value | Aggregate | kg | 3000 | 4×1200 | 4×2000 | 4×3000 | 4×4000 |
| Cement | kg | 600 | 1000 | 1200 | 1800 | 2000 | |
| Flyash | kg | - | 300 | 400 | 400 | 800 | |
| Water | kg | 250 | 400 | 500 | 800 | 1200 | |
| Additive | kg | 40 | 40 | 50 | 80 | 80 | |
| Measuring accuracy | Aggregate | % | ±2 | ||||
| Powder | % | ±1 | |||||
| Water | % | ±1 | |||||
| Additive | % | ±1 | |||||
| Unloading height | 3.8m | 3.8m | 3.8m | 4m | 4m | ||
| Dimension (length× width) | m | 31×16 | 27×16.2 | 47×22 | 58×19 | 68×22 | |
| Model | HZS35 | HZS50-CP1000 | HZS75-CP1500 | HZS120D | HZS150 | ||
| Theoretical productivity | m3/h | 35 | 50 | 75 | 100 | 150 | |
| Mixer nominal capacity | m3 | 0.75 | 1 | 1.5 | 2 | 3 | |
| Aggregate bin: quantity and capacity | m3 | 3×2 | 3×7 | 3×12 | 4×15 | 4×25 | |
| Max. weighing value | Aggregate | kg | 2000 | 3000 | 4000 | 4×2000 | 4×3000 |
| Cement | kg | 400 | 600 | 1000 | 1200 | 1800 | |
| Flyash | kg | - | - | - | 400 | 800 | |
| Water | kg | 250 | 250 | 400 | 500 | 300 | |
| Additive | kg | 40 | 40 | 40 | 50 | 80 | |
| Measuring accuracy | Aggregate | % | ±2 | ||||
| Powder | % | ±1 | |||||
| Water | % | ±1 | |||||
| Additive | % | ±1 | |||||
| Unloading height | 3.8m | 3.8m | 3.8m | 4m | 4m | ||
| Dimension (length× width) | m | 16×11.5 | 16×13 | 27×13 | 33×14 | 38×17 | |
