Telescopic boom aerial working platform
Telescopic boom aerial working platform

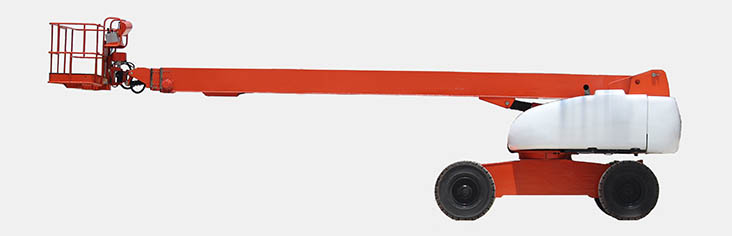

CMZB25
- FEATURES
- PARAMETERS
1. Wide operating range: 360° full direction operation at the height from 0~89 ft 2 in (27.2 m), with a horizontal outreach by 71 ft 9 in (21.9 m).
2. Large load capacity: The maximum load capacity is 1058 lbs (480 kg); the platform can hold 2 operators.
3. Powerful driving force: The engine is of famous international brand, large in power and excellent in grade ability. The maximal grade ability can be up to 45%.
4. Advanced technology: Self-adaption floating device, fault self-diagnosis technology, auto-leveling system, and anti-collision transducer device.
5. High reliability: The engine, key hydraulic components and electric components are all of international brand, designed in conformity with EN280, AS1418.10 and GB25849.
6. Good safety: Overload limit and rollover protection system.
7. Easy maintenance: Swing-out engine, easy to maintain.
Model | CMZB25 | |
Dimensions | ||
Platform height | 82 ft 7 in (25.2 m) | |
Working height | 89 ft 2 in (27.2 m) | |
Horizontal outreach | 71 ft 9 in (21.9 m) | |
| 37 ft 2 in (11.35 m) | |
| 8 ft 2 in (2.49 m) | |
| 9 ft 2 in (2.8 m) | |
Ground clearance | 1 ft 4 in (0.43 m) | |
| 9 ft 8 in (3 m) | |
Size of platform (L*W*H) | 4 ft 8 in *2 ft 8 in * 4 ft 1 in (1.45 m *0.85 m *1.24 m) | |
Performance Data | ||
Platform Capacity | 2 | |
Load capacity of platform | 1058 lbs (480 kg) | |
Turntable rotation | 360° | |
Platform rotation | 160° | |
Driving speed (stowed) | 0～3.2 mph (5.2 km/h) | |
Driving speed (raised) | 0～0.7 mph (1.1 km/h) | |
Gradeability | 30% (2WD) 45% (4WD) | |
Outside turning radius | 19 ft 2 in (5.84 m) | |
Inside turning radius | 8 ft (2.44 m) | |
Tail swing | 4 ft 3 in (1.32 m) | |
Allowable slope | 3° | |
Drive * steering | 2 WD * 2 WS /4 WD * 2 WS | |
Tire size/type | 12.00 - 20 / Solid | |
Engine | ||
Power source | diesel engine | |
Drive Type | Hydraulic pressure | |
Volume of hydraulic oil tank | 160 L | |
Power | 60 KW | |
Weight | ||
Overall weight | 33775 lbs (15320 kg) - (2WD) | |
Standards compliant | CE、ISO、GOST | |
