Telescopic boom aerial working platform
Telescopic boom aerial working platform

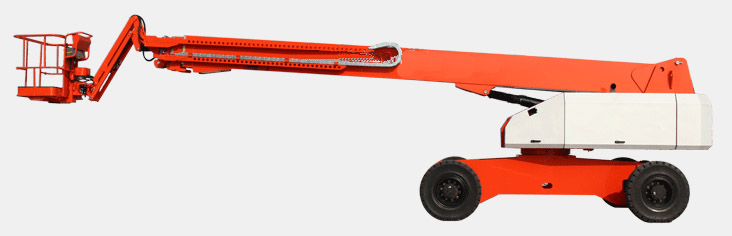

CMZB38J
- FEATURES
- PARAMETERS
1. Wide operating range: 360° full direction operation at the height from 0~131 ft (40.1 m), with a horizontal reach max. by 73 ft 8 in (22.5 m).
2. Large load capacity: The lift capacity is 551 lbs (250kg); the platform can hold 2 operators.
3. Powerful driving force: The engine is of famous international brand, large in power, strong gradeability.
4. Advanced technology: Self-adaption floating device, fault self-diagnosis technology, self-levelling system, and anti-collision transducer device.
5. High reliability: The engine, key hydraulic components and electric components are all of international brand, designed in conformity with EN280, AS1418.10 and GB25849.
6. Good safety: Overload limit and rollover protection system.
7. Easy maintenance: Swing-out engine, easy to maintain.
Models | GTBZ38J | |
Dimensions | ||
Platform height max. | 125 ft (38.1m) | |
Working height max. | 131 ft (40.1 m) | |
Horizontal reach max. | 73 ft 8 in (22.5 m) | |
| 46 ft (14.02 m) | |
| 8 ft 2 in (2.49 m) | |
| 10 ft 1 in (3.08 m) | |
| 12 ft (3.66 m) | |
Ground clearance | 1 ft 4 in (0.43 m) | |
Platform size (L*W*H) | 4 ft 8 in*2 ft 8 in*4 ft 1 in (1.45 m*0.85 m*1.24 m) | |
Productivity | ||
Max. platform occupancy | 2 | |
Lift capacity | 551 lbs (250kg) - Unlimited | |
Turntable rotation | 360° continuous | |
Platform rotation | 160° | |
Drive speed - stowed | 0～2.7 mph (0~4.4 km/h) | |
Drive speed - raised | 0～0.7 mph (0~1.1 km/h) | |
Gradeability | 40% | |
Turning radius - inside | 8 ft 4 in (2.56 m) | |
Turning radius - outside | 18 ft 3 in (5.57 m) | |
Turntable tailswing | 6 ft (1.82 m) | |
Max. allowable slope | 3° | |
Max. noise on normal use | 82 dB(A) | |
Drive & steer model | 4 WD * 4 WS | |
Tire size / type | 12.00 - 20 / solid | |
Power | ||
Power source | Original Cummins/Perkins Engine | |
Fuel tank capacity | 52.83 gal (200 L) | |
Control voltage | 12 VDC | |
Power | 60 KW | |
Weight | ||
Overall weight | 44754 lbs (20300 kg) | |
Standards Compliance | CE/ ISO/ ADR/ ARAMCO | |
