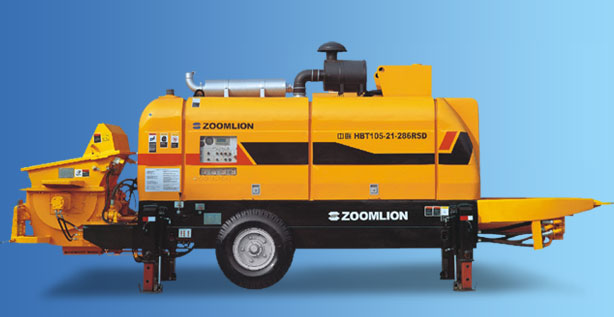

Trailer-mounted concrete pump

Trailer-mounted concrete pump

HBT105.21.286RSD

REQUEST A QUOTE

You have choose: Trailer-mounted concrete pump - HBT105.21.286RSD

See the verification code Click refresh!

BROCHURE DOWNLOAD|SALES NETWORK

  • FEATURES
  • PARAMETERS
HBT105.21.286RSD

1.Stability:
• Special hydraulic system with double pumps and double circuits: compared with single pump double circuits, the pumping system and distributing system are driven by two independent pumps that allow a more stable oil flow rate to the pumping unit.
• Intelligent control system: advanced technology, easy operation and high reliability electrical system.

2.High efficiency:
• Hopper: High Suction Capacity due to Large Angle Fluent Hopper Design with less feed accumulation area.
• S valve: well designed S valve ensures the smooth flow of concrete.
• Rapid concrete piston substitution: the pistons can be changed easily by a single operator without any special tools in 15minutes. The hydraulic cylinder has an extra stroke to allow the piston to extend from the concrete cylinder.

3.Energy saving:

• Low running costs.
• Hydraulic oil treatment: equipped with multistage fine filtration and water separation devices, to extend hydraulic components lifetime and reduce oil changes.
• Super wear-resistant component: special steel alloy made spectacles wear plate and cutting ring plus high wear-resistant cast steel material made mixing blade, ensuring a longer lifetime of weary spare parts.

ModelHBT105.21.286RSD
Drive powerKW286
Max. Concrete Outputm3/h105/65
Max. Concrete Pressurebar210/130
Concrete Cylinder(diam x stroke)mm200x2100
Strokes1/min13/7
Hopper CapacityL800
Filling heightmm1400
