Trailer-mounted concrete pump

Trailer-mounted concrete pump

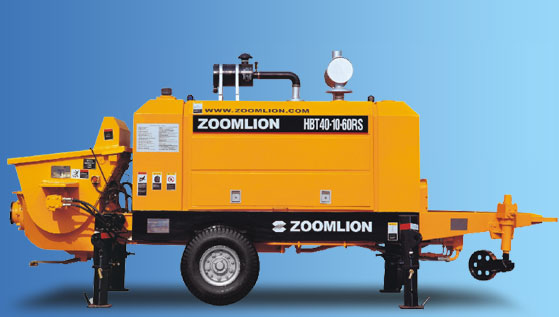

HBT40.10.60RS

REQUEST A QUOTE

You have choose: Trailer-mounted concrete pump - HBT40.10.60RS

See the verification code Click refresh!

BROCHURE DOWNLOAD|SALES NETWORK

  • FEATURES
  • PARAMETERS
HBT40.10.60RS

1 .Stability:
• Special hydraulic system with double pumps and double circuits: compared with single pump double circuits, the pumping system and distributing system are driven by two independent pumps that allow a more stable oil flow rate to the pumping unit.
• Intelligent control system: advanced technology, easy operation and high reliability electrical system.

2. High efficiency:
• Hopper: High Suction Capacity due to Large Angle Fluent Hopper Design with less feed accumulation area.
• S valve: well designed S valve ensures the smooth flow of concrete.
• Rapid concrete piston substitution: the pistons can be changed easily by a single operator without any special tools in 15minutes. The hydraulic cylinder has an extra stroke to allow the piston to extend from the concrete cylinder.

3. Energy saving:
• Low running costs.
• Hydraulic oil treatment: equipped with multistage fine filtration and water separation devices, to extend hydraulic components lifetime and reduce oil changes.
• Super wear-resistant component: special steel alloy made spectacles wear plate and cutting ring plus high wear-resistant cast steel material made mixing blade, ensuring a longer lifetime of weary spare parts.


ModelHBT40.10.48RS
Drive powerKW60
Max. Concrete Outputm3/h49/26
Max. Concrete Pressurebar50/100
Concrete Cylinder(diam x stroke)mm180x1250
Strokes1/min28/15
Hopper CapacityL500
Filling heightmm1335
