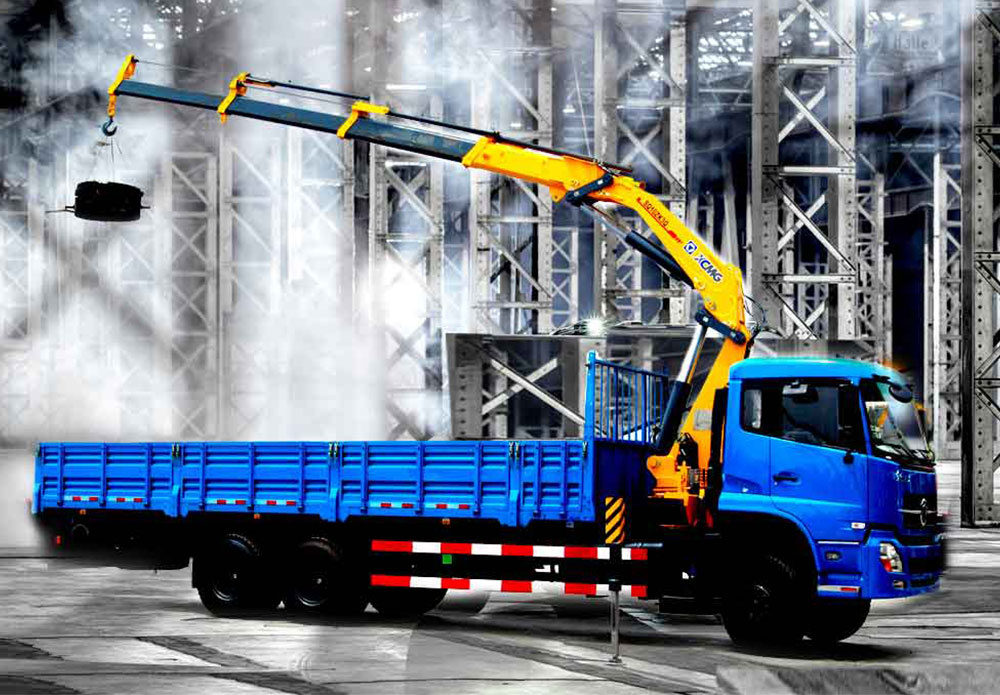

Truck mounted crane
SQ10ZK3Q
| Model | SQ10ZK3Q | Unit |
|---|
| Max Lifting Moment | 20 | t.m |
| Max Lifting Capacity | 10000 | kg |
| Recommend Power Needed At Recommend Oil Flow | 28 | kw |
| Max Oil Flow of Hydraulic System | 40 | L/min |
| Rated Pressure Of Hydraulic System | 28 | MPa |
| Oil Tank Capacity | 160 | L |
| Rotation Angle | (360°)All Rotation | 。 |
| Crane Weight | 3477 | kg |
| Installation Space | 1150 | mm |
| Choice of Chassis | DFL1250A9 ; CA1240PK2L7T4EA81; HFC1202KR1K3; EQ5201GFJ6; CA1200PK2L7T3EA80; BJ1317VNPJJ-S5; BJ5253ZKPJJ; CA1253P7K2L11T1E ; EQ1252GFJ; DFL1253AX; |
SQ10ZK3Q Lifting capability diagram| Working radius (m) | 2 | 4.17 | 5.99 | 7.87 | 9.75 |
|---|
| Lifting capacity (kg) | 10000 | 4600 | 3050 | 2280 | 1700 |
|---|
