Truck mounted crane

Truck mounted crane

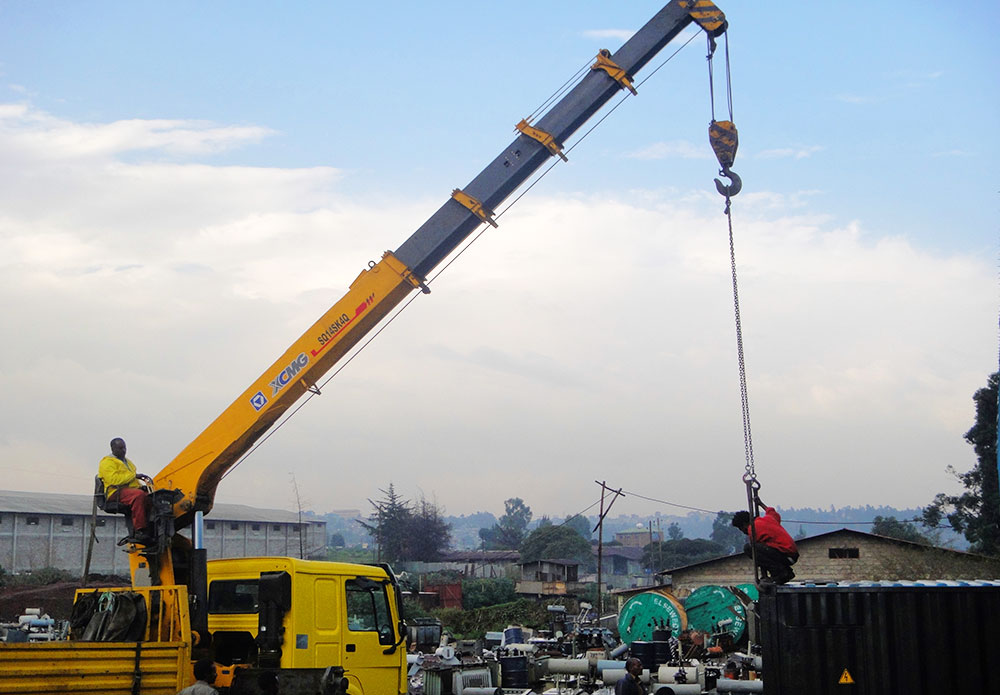

SQ14SK4Q

REQUEST A QUOTE

You have choose: Truck mounted crane - SQ14SK4Q

See the verification code Click refresh!

BROCHURE DOWNLOAD|SALES NETWORK

  • FEATURES
  • PARAMETERS
SQ14SK4Q
ModelSQ14SK4QUnit
Max Lifting Capacity14000kg
Max Lifting Moment35T.M
Recommend Power32kw
Max Oil Flow of Hydraulic System63L/min
Max Pressure of Hydraulic System26MPa
Oil Tank Capacity160L
Rotation AngleAll Rotation
Crane Weight4800kg
Installation Space1300mm
Choice of ChassisBJ1317VNPJJ-S5; NXG1310D3ZEX
SQ14SK4Q Lifting capability diagram
Working radius(m) 2.5581113.215.8
Lifting capacity(kg) 1400060003500230018001200
