Truck mounted crane
Truck mounted crane

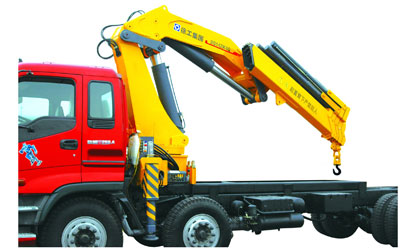

SQ14ZK4Q
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Model | SQ14ZK4Q | Unit |
|---|---|---|
| Max Lifting Moment | 35 | t.m |
| Max Lifting Capacity | 14000 | kg |
| Recommend Power Needed At Recommend Oil Flow | 32 | kw |
| Max Oil Flow of Hydraulic System | 63 | L/min |
| Rated Pressure Of Hydraulic System | 26 | MPa |
| Oil Tank Capacity | 220 | L |
| Rotation Angle | (360°)All Rotation | 。 |
| Crane Weight | 4800 | kg |
| Installation Space | 1300 | mm |
| Choice of Chassis | BJ1317VNPJJ-S5; NXG1310D3ZEX | |
| Working radius(m) | 2.5 | 4.046 | 5.826 | 7.646 | 9.516 | 11.4 |
|---|---|---|---|---|---|---|
| Lifting capacity(kg) | 140000 | 8400 | 5478 | 4080 | 3148 | 245 |
