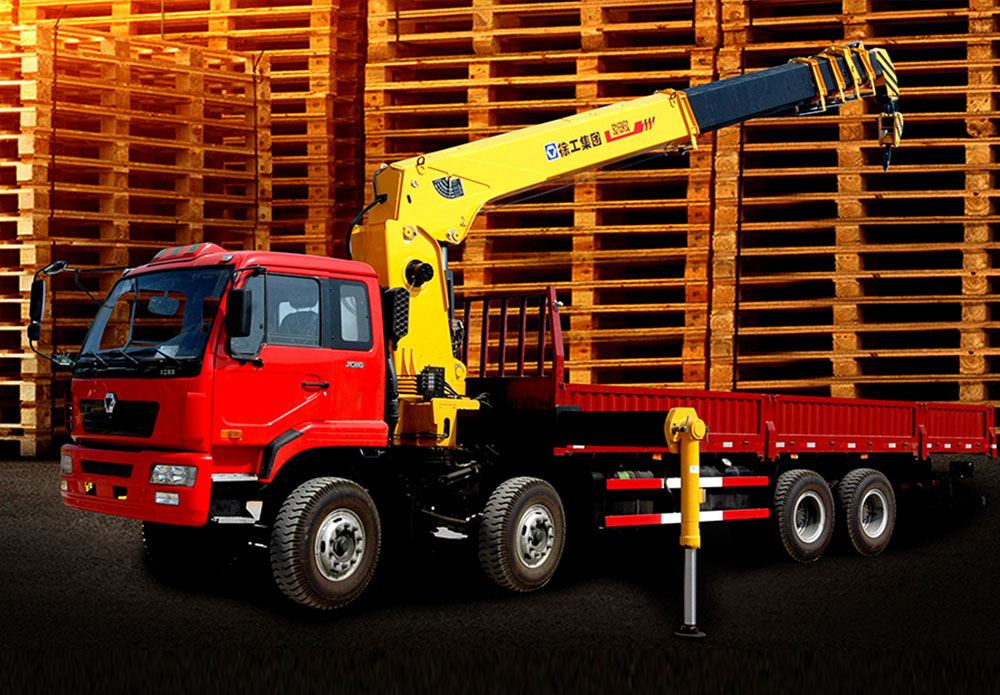

Truck mounted crane

SQ16SK4Q

REQUEST A QUOTE

You have choose: Truck mounted crane - SQ16SK4Q

*Region

*Country

*Your Name

*Email

*Mobile Number

*Verification Code See the verification code Click refresh!

Model	SQ16SK4Q	Unit
Max Lifting Capacity	16000	kg
Max Lifting Moment	40	T.M
Recommend Power	45	kw
Max Oil Flow of Hydraulic System	80	L/min
Max Pressure of Hydraulic System	28	MPa
Oil Tank Capacity	260	L
Rotation Angle	All Rotation
Crane Weight	6020	kg
Installation Space	1400	mm
Choice of Chassis	BJ1317VNPJJ-S5;NXG1310D3ZEX;DFL1311A3;

**SQ16SK4Q Lifting capability diagram**
Working radius(m)	2.7	5.6	8.5	11.5	14.5	18.5
Lifting capacity(kg)	16000	7000	4200	3200	2200	1000
