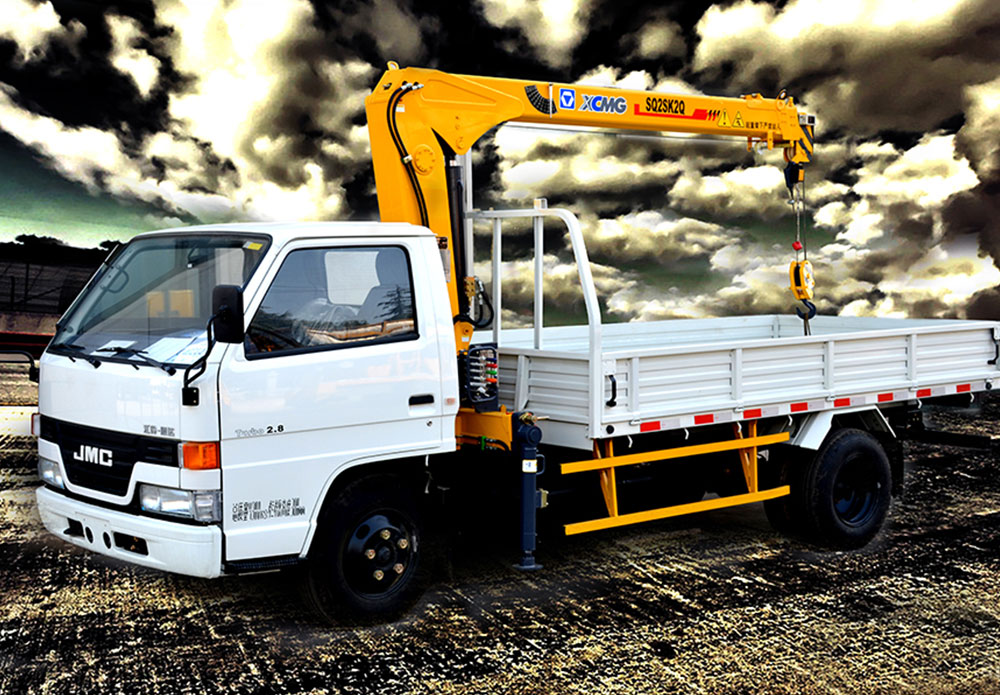

Truck mounted crane

Truck mounted crane

SQ2SK1Q

REQUEST A QUOTE

You have choose: Truck mounted crane - SQ2SK1Q

See the verification code Click refresh!

BROCHURE DOWNLOAD|SALES NETWORK

  • FEATURES
  • PARAMETERS
SQ2SK1Q

Model

SQ2SK1Q

Unit

Max Lifting Capacity

2100

kg

Max Lifting Moment

4.2

T.M

Recommend Power

9

kw

Max Oil Flow of Hydraulic System

20

L/min

Max Pressure of Hydraulic System

16

MPa

Oil Tank Capacity

25

L

Rotation Angle

All Rotation


Crane Weight

640/818

kg

Installation Space

850

mm

Choice of Chassis

HFC1065KRT;JX1050TGB23;JX1060TSG23;EQ1060GJ20D3; EQ1092FJ;EQ1092FJ1;EQ1060TJ20D3

SQ2SK1Q Lifting capability diagram

Working radius (m)

2.10

2.50

3.00

Lifting capacity (kg)

2100

1800

1000
