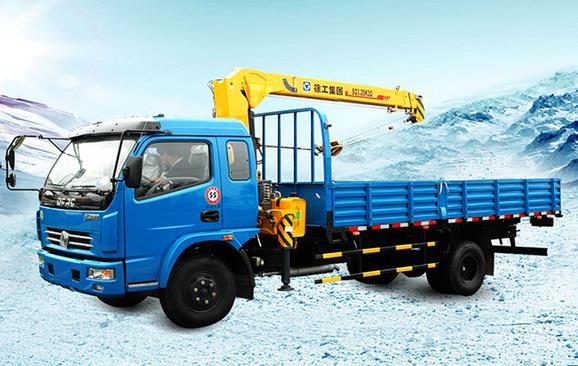

Truck mounted crane

SQ3.2SK1Q

REQUEST A QUOTE

You have choose: Truck mounted crane - SQ3.2SK1Q

See the verification code Click refresh!

BROCHURE DOWNLOAD|SALES NETWORK

  • FEATURES
  • PARAMETERS
SQ3.2SK1Q

Model

SQ3.2SK1Q

Unit

Max Lifting Capacity

3200

kg

Max Lifting Moment

6.72

T.M

Recommend Power

14

kw

Max Oil Flow of Hydraulic System

25

L/min

Max Pressure of Hydraulic System

20

MPa

Oil Tank Capacity

30

L

Rotation Angle

All Rotation

Crane Weight

1105/1229

kg

Installation Space

850

mm

Choice of Chassis

EQ1092FJ;EQ1092FJ1;EQ1092F3GJ1;EQ1081GJ12D5;
                DFL1120B;HFC1083K103R1D;EQ5121GFJ;

SQ3.2SK1Q  Lifting capability diagram

Working radius (m)

2.10

3.00

5.35

Lifting capacity (kg)

3200

1850

950
