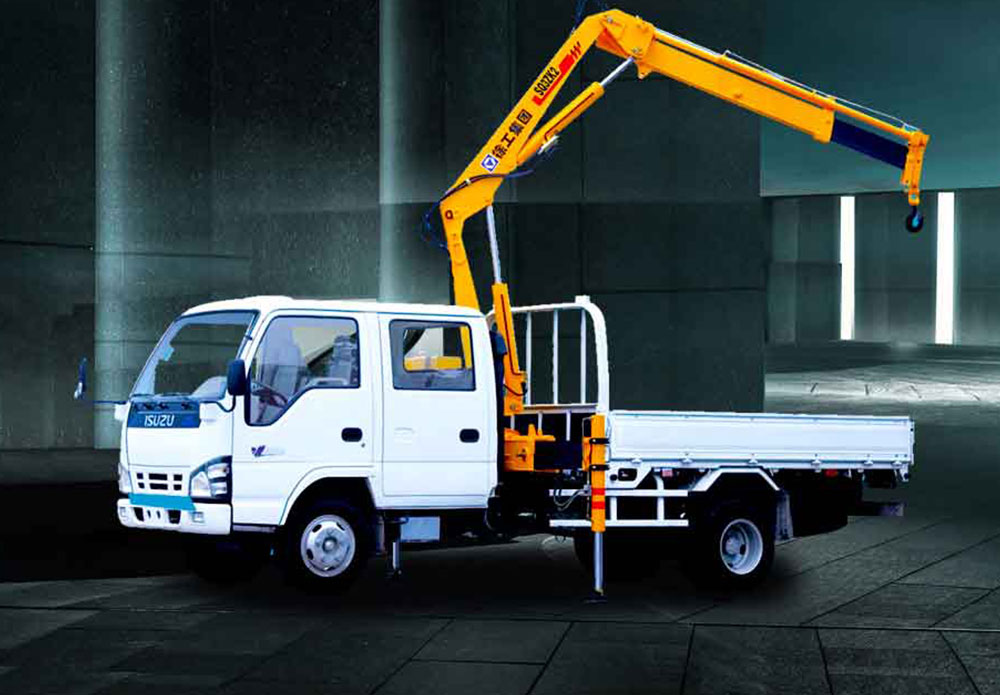

Truck mounted crane
SQ3.2ZK2
| Model | SQ3.2ZK2 | Unit |
|---|
| Max Lifting Moment | 6.72 | t.m |
| Max Lifting Capacity | 3200 | kg |
| Recommend Power Needed At Recommend Oil Flow | 14 | kw |
| Max Oil Flow of Hydraulic System | 25 | L/min |
| Rated Pressure Of Hydraulic System | 22 | MPa |
| Oil Tank Capacity | 60 | L |
| Rotation Angle | 370 | 度 |
| Crane Weight | 1200 | kg |
| Installation Space | 850 | mm |
| Choice of Chassis | EQ1092FJ1;EQ1092FJ;NKR77PLLWCJAY ;DFL1120B D530;EQ1081GJ12D5;HFC1083K103R1D;EQ1092F3GJ1;EQ5121GFJ; |
SQ3.2ZK2 Lifting capability diagram| Working radius (m) | 2.1 | 4.15 | 5.8 | 7.3 |
|---|
| Lifting capacity (kg) | 3200 | 1300 | 950 | 650 |
|---|
