Truck mounted crane

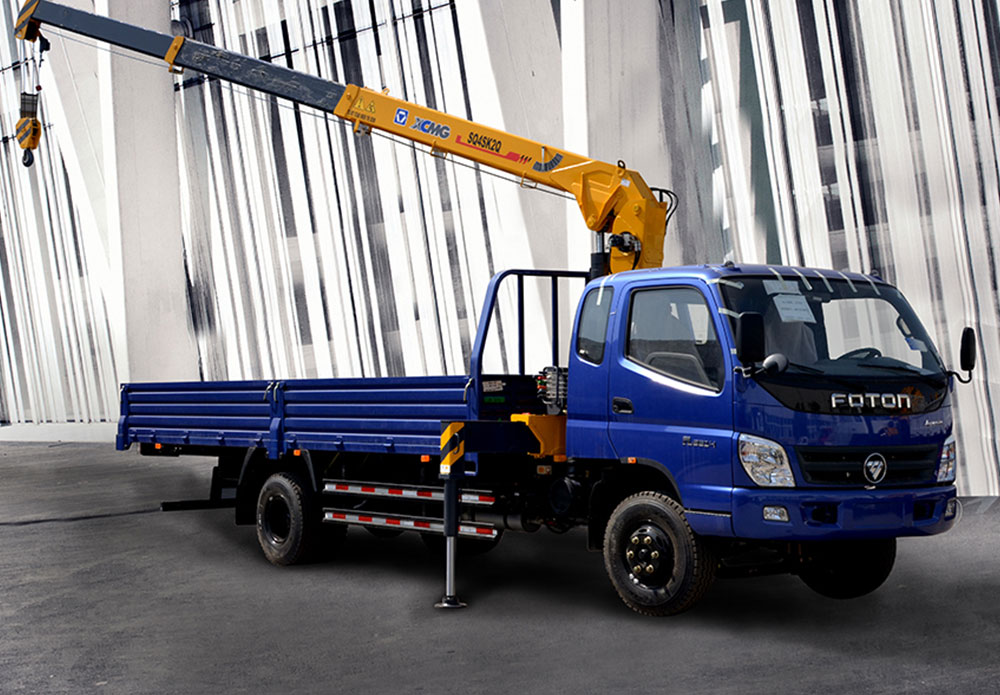

SQ4SK3Q
| Model | SQ4SK3Q | Unit |
|---|
| Max Lifting Capacity | 4000 | kg |
| Max Lifting Moment | 8.40/10 | T.M |
| Recommend Power | 16 | kw |
| Max Oil Flow of Hydraulic System | 25 | L/min |
| Max Pressure of Hydraulic System | 20 | MPa |
| Oil Tank Capacity | 60 | L |
| Rotation Angle | All Rotation |
|
| Crane Weight | 1271/1396 | kg |
| Installation Space | 850 | mm |
| Choice of Chassis | EQ1092FJ; EQ1092FJ1; EQ1092F3GJ1; EQ1081GJ12D5; DFL1120B; LZ1120LAPT; HFC1132KR1K3; EQ5121GFJ; HFC1083K103R1D; EQ1110GLJ3; EQ1120GLJ; EQ1168TLJ; BJ1122V4PBB-A1; BJ1158VKPFK-2 |
SQ4SK3Q Lifting capability diagram| Working radius (m) | 2.50 | 3.40 | 5.40 | 7.40 | 9.42 |
|---|
| Lifting capacity (kg) | 4000 | 2600 | 1600 | 900 | 400 |
|---|
