Truck mounted crane

Truck mounted crane

SQ5SK2Q

REQUEST A QUOTE

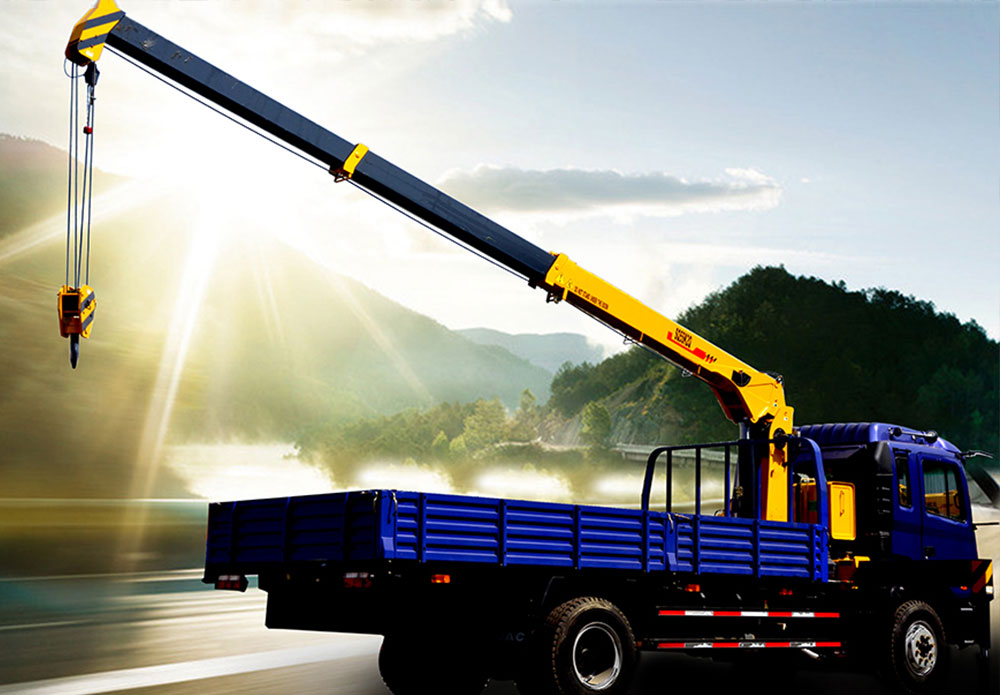

You have choose: Truck mounted crane - SQ5SK2Q

See the verification code Click refresh!

BROCHURE DOWNLOAD|SALES NETWORK

  • FEATURES
  • PARAMETERS
SQ5SK2Q

Model

SQ5SK2Q

Unit

Max Lifting Capacity

5000

kg

Max Lifting Moment

12.5

T.M

Recommend Powe

18

kw

Max Oil Flow of Hydraulic System

32

L/min

Max Pressure of Hydraulic System

18

MPa

Oil Tank Capacit

100

L

Rotation Angle

All Rotation


Crane Weight

2074/2170

kg

Installation Space

1000

mm

Choice of Chassis

CA1140PK2L3EA80; DFL1140B; EQ1126KJ1; HFC1132KR1K3; LZ1120LAPT; EQ1141NBJ2; EQ5201GFJ6; EQ5201GFJ6; NXG1160D3ZAL1X

SQ2SK1Q Lifting capability diagram

Working radius(m)

2.5

3.62

6.05

8.5

Lifting capacity(kg)

5000

2800

1500

1100

SQ2SK2Q Lifting capability diagram

Working radius(m)

2.5

3.62

6.05

8.5

11

Lifting capacity(kg)

5000

2800

1500

1100

400
