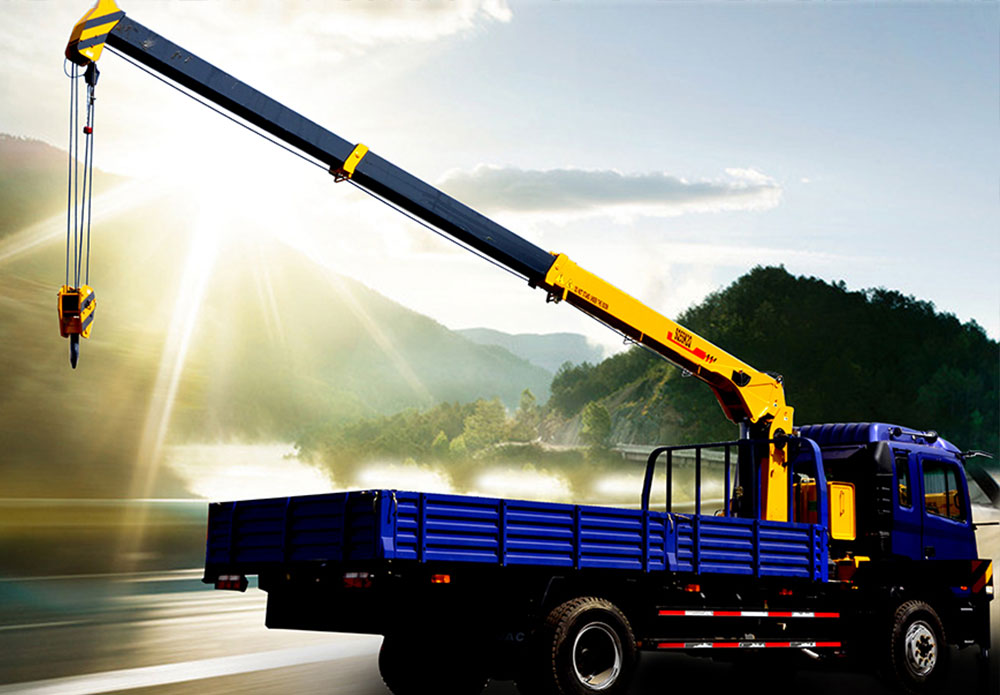

SQ5SK3Q
REQUEST A QUOTE
- FEATURES
- PARAMETERS
Model | SQ5SK3Q | Unit |
|---|---|---|
Max Lifting Capacity | 5000 | kg |
Max Lifting Moment | 12.5 | T.M |
Recommend Powe | 18 | kw |
Max Oil Flow of Hydraulic System | 32 | L/min |
Max Pressure of Hydraulic System | 18 | MPa |
Oil Tank Capacit | 100 | L |
Rotation Angle | All Rotation | |
Crane Weight | 2074/2170 | kg |
Installation Space | 1000 | mm |
Choice of Chassis | CA1140PK2L3EA80; DFL1140B; EQ1126KJ1; HFC1132KR1K3; LZ1120LAPT; EQ1141NBJ2; EQ5201GFJ6; EQ5201GFJ6; NXG1160D3ZAL1X | |
SQ2SK1Q Lifting capability diagram
Working radius(m) | 2.5 | 3.62 | 6.05 | 8.5 |
|---|---|---|---|---|
Lifting capacity(kg) | 5000 | 2800 | 1500 | 1100 |
SQ5SK2Q Lifting capability diagram
Working radius(m) | 2.5 | 3.62 | 6.05 | 8.5 | 11 |
|---|---|---|---|---|---|
Lifting capacity(kg) | 5000 | 2800 | 1500 | 1100 | 400 |
