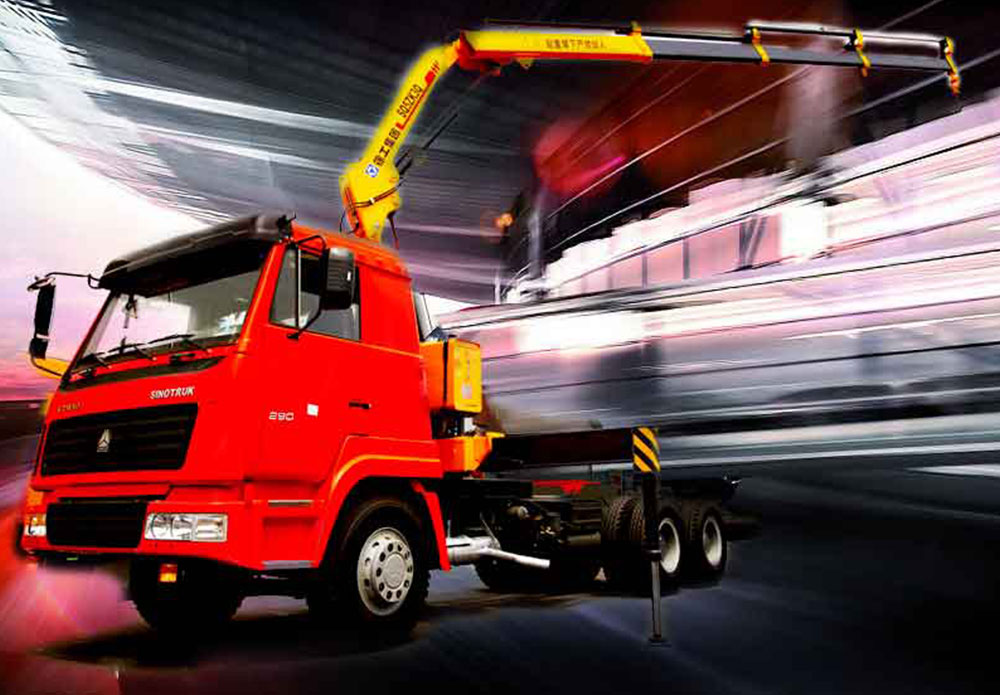

Truck mounted crane
SQ5ZK2Q
| Model | SQ5ZK2Q | Unit |
|---|
| Max Lifting Moment | 10.5 | t.m |
| Max Lifting Capacity | 5000 | kg |
| Recommend Power Needed At Recommend Oil Flow | 18 | kw |
| Max Oil Flow of Hydraulic System | 25 | L/min |
| Rated Pressure Of Hydraulic System | 28 | MPa |
| Oil Tank Capacity | 90 | L |
| Rotation Angle | (360°)All Rotation | 。 |
| Crane Weight | 2011 | kg |
| Installation Space | 1050 | mm |
| Choice of Chassis | CA1140PK2L3EA80 ; DFL1140B; EQ1126KJ1; HFC1132KR1K3; LZ1120LAPT; EQ1141NBJ2; EQ5121GFJ; EQ5201GFJ6; HN1310P29D6M3J ; NXG1160D3ZAL1X; |
SQ5ZK2Q Lifting capability diagram| Working radius (m) | 2.1 | 4.44 | 6.2 | 8.01 |
|---|
| Lifting capacity (kg) | 5000 | 2400 | 1600 | 1050 |
|---|
