Truck mounted crane

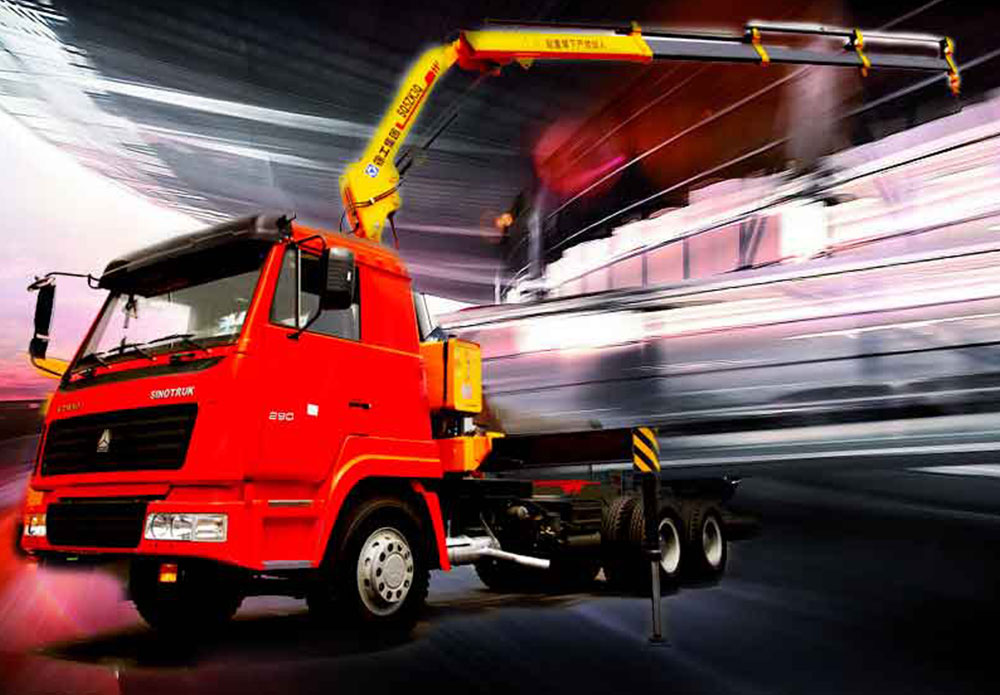

SQ5ZK3Q

REQUEST A QUOTE

You have choose: Truck mounted crane - SQ5ZK3Q

See the verification code Click refresh!

BROCHURE DOWNLOAD|SALES NETWORK

  • FEATURES
  • PARAMETERS
SQ5ZK3Q
  • PARAMETER SPARE

  • INQUIRY

  • ModelSQ5ZK3QUnit
    Max Lifting Moment10.5t.m
    Max Lifting Capacity5000kg
    Recommend Power Needed At Recommend Oil Flow18kw
    Max Oil Flow of Hydraulic System25L/min
    Rated Pressure Of Hydraulic System28MPa
    Oil Tank Capacity90L
    Rotation Angle(360°)All Rotation
    Crane Weight2117kg
    Installation Space1050mm
    Choice of ChassisCA1140PK2L3EA80 ;DFL1140B;EQ1126KJ1;HFC1132KR1K3;LZ1120LAPT;EQ1141NBJ2;EQ5121GFJ; EQ5201GFJ6;HN1310P29D6M3J ;NXG1160D3ZAL1X;
    SQ5ZK3Q Lifting capability diagram
    Working radius (m) 2.14.546.38.119.92
    Lifting capacity (kg) 5000240016001050700
