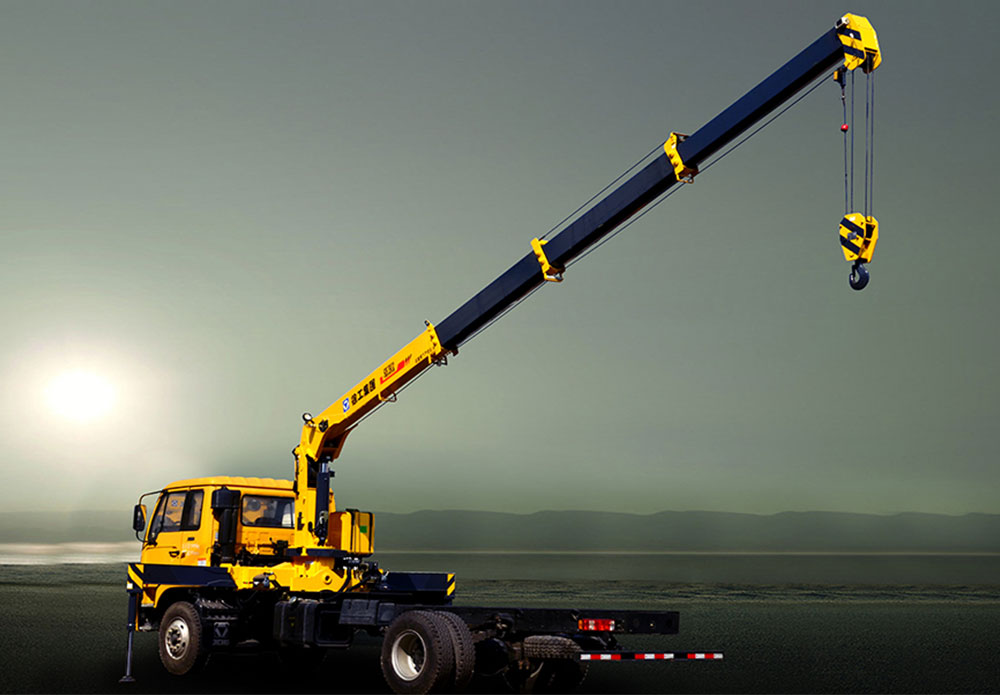

Truck mounted crane
SQ6.3SK2Q
| Model | SQ6.3SK2Q | Unit |
|---|
| Max Lifting Capacity | 6300 | kg |
| Max Lifting Moment | 15.7 | T.M |
| Recommend Power | 20 | kw |
| Max Oil Flow of Hydraulic System | 40 | L/min |
| Max Pressure of Hydraulic System | 20 | MPa |
| Oil Tank Capacity | 90 | L |
| Rotation Angle | All Rotation |
|
| Crane Weight | 2117/2270 | kg |
| Installation Space | 900 | mm |
| Choice of Chassis | CA1163P7K2L3E ; CA1176PK2L9T3A95 ; CA1170PK2L7T3EA80; CA1140PK2L3EA80; DFL1140B; EQ1126KJ1; HFC1202KR1K3; EQ1141NBJ2; EQ5161GFJ7; BJ1317VNPJJ-S5; EQ5201GFJ6; LZ1160LCMT; DFL1250A9; BJ5317ZNPJJ-S; NXG1160D3ZAL1X |
SQ6.3SK2Q Lifting capability diagram| Working radius (m) | 2.5 | 3.82 | 6.17 | 8.5 |
|---|
| Lifting capacity (kg) | 6300 | 2900 | 1600 | 1200 |
|---|
