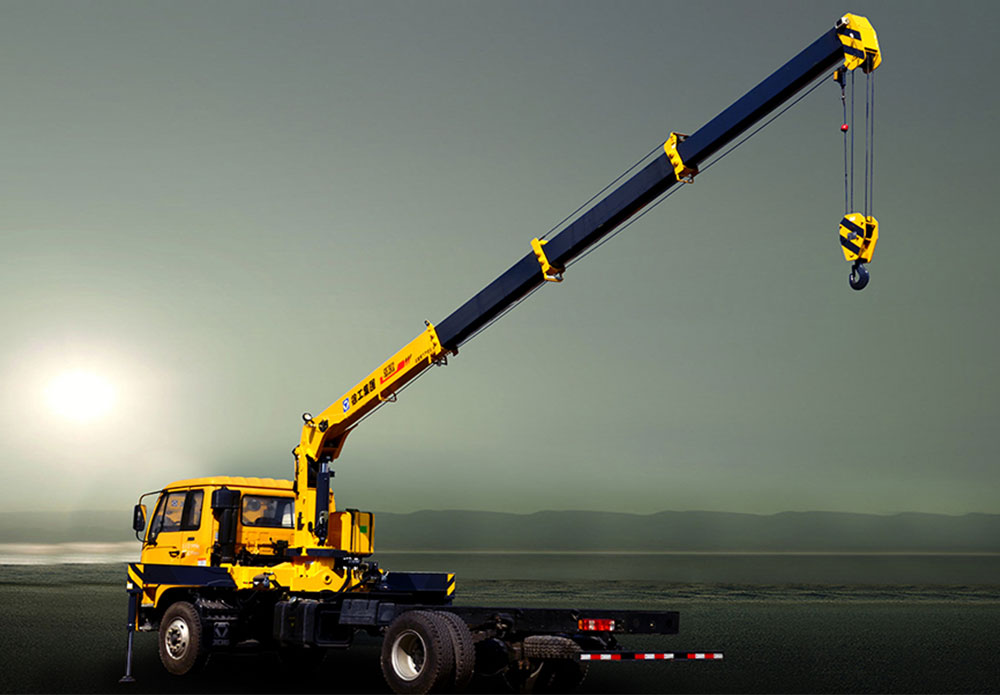

Truck mounted crane

SQ6.3SK3Q

REQUEST A QUOTE

You have choose: Truck mounted crane - SQ6.3SK3Q

See the verification code Click refresh!

BROCHURE DOWNLOAD|SALES NETWORK

  • FEATURES
  • PARAMETERS
SQ6.3SK3Q
ModelSQ6.3SK3QUnit
Max Lifting Capacity6300kg
Max Lifting Moment15.7T.M
Recommend Power20kw
Max Oil Flow of Hydraulic System40L/min
Max Pressure of Hydraulic System20MPa
Oil Tank Capacity90L
Rotation AngleAll Rotation
Crane Weight2117/2270kg
Installation Space900mm
Choice of ChassisCA1163P7K2L3E; CA1176PK2L9T3A95; CA1170PK2L7T3EA80; CA1140PK2L3EA80 ; DFL1140B; EQ1126KJ1; HFC1202KR1K3; EQ1141NBJ2; EQ5161GFJ7; BJ1317VNPJJ-S5; EQ5201GFJ6; LZ1160LCMT; DFL1250A9; BJ5317ZNPJJ-S; NXG1160D3ZAL1X;
SQ6.3SK3Q Lifting capability diagram
Working radius (m) 2.53.966.38.611
Lifting capacity (kg) 6300280016001200600
