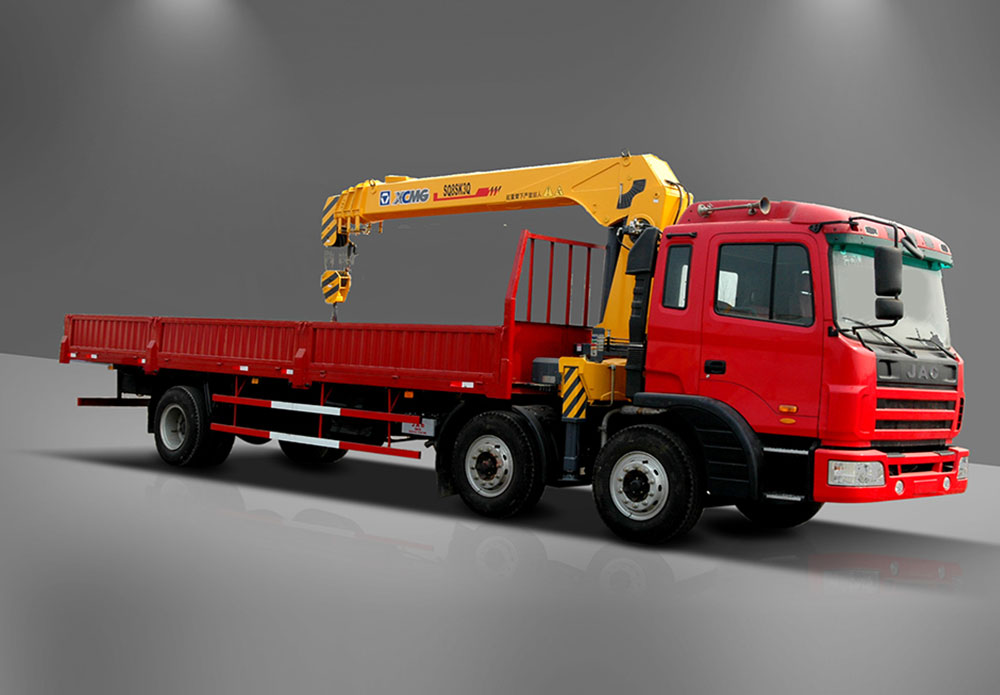

Truck mounted crane
SQ8SK3Q
| Model | SQ8SK3Q | Unit |
|---|
| Max Lifting Capacity | 8000 | kg |
| Max Lifting Moment | 20 | T.M |
| Recommend Power | 28 | kw |
| Max Oil Flow of Hydraulic System | 55 | L/min |
| Max Pressure of Hydraulic System | 27 | MPa |
| Oil Tank Capacity | 160 | L |
| Rotation Angle | All Rotation |
| Crane Weight | 3300 | kg |
| Installation Space | 1200 | mm |
| Choice of Chassis | CA1176PK2L9T3A95 ; CA1170PK2L7T3EA80; CA1240PK2L7T4EA81; HFC1202KR1K3; EQ5161GFJ7; BJ1317VNPJJ-S5; EQ5201GFJ6; CA1200PK2L7T3EA80; LZ1160LCMT; DFL1250A9; BJ5317ZNPJJ-S; CA1253P7K2L11T1E ; EQ1252GFJ; |
SQ8SK3Q Lifting capability diagram| Working radius (m) | 2.5 | 4.5 | 7 | 9 | 11.5 |
|---|
| Lifting capacity (kg) | 8000 | 4400 | 2500 | 1750 | 1100 |
|---|
