Tyre compactor
Tyre compactor

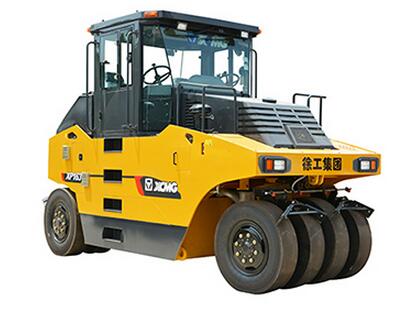

XP163
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Item | unit | Parameters |
| Weight parater | ||
| Operating weight | (kg) | 11100 |
| Counterweight weight | (kg) | 4000 |
| Water counterweight weight | (kg) | 650 |
| max Operating weight | (kg) | 16000 |
| Travel Speed parameter | ||
| Range of speed | ||
| Forward Ⅰ | (km/h) | 4.2 |
| Forward Ⅱ | (km/h) | 8.2 |
| Forward Ⅲ | (km/h) | 17.4 |
| ReverseⅠ | (km/h) | 4.2 |
| ReverseⅡ | (km/h) | 8.2 |
| Wheelbase | (mm) | 3700 |
| Wheel track | (mm) | 450 |
| Gradeability in theory | - | 20% |
| Minimum outer turning radius | (mm) | 7230 |
| Working parameter | ||
| Compacting width | (mm) | 2055 |
| Overlapping of front&rear tyre | (kg) | 30 |
| Ground pressure | - | 200-400 |
| Minimum ground clearance | (mm) | 250 |
| Engine | ||
| Engine model | - | YC4A125Z |
| Rated rotating speed | (r/min) | 2200 |
| Rated power | (kW) | 92 |
| Engine oil consumption | (g/kW·h) | 228 |
| Maximum torque | (N.m) | 450 |
| Piston displacement | (L) | 4.836 |
| Dimensions(LxWxH) | ||
| Dimensions(LxWxH) | (mm) | 4770×2210×3442 |
