Tyre compactor
Tyre compactor

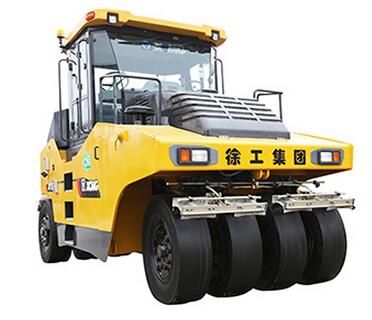

XP303
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| item | unit | parameter |
| Min Operating weight | kg | 15000 |
| Max Operating weight | kg | 30300 |
| Water counterweight weight | kg | 650 |
| Counterweight weight | kg | 14550 |
| Compacting width | mm | 2360 |
| Tire amount of overlap | mm | 65 |
| Overlapping of front&rear tyre | kPa | 200～545 |
| Ground pressure | mm | 7620 |
| The front wheel swing quantity | mm | ±50 |
| Minimum ground clearance | mm | 300 |
| Gradeability in theory | ％ | 20 |
| Wheelbase | mm | 3840 |
| Speed | ||
| I speed | km/h | 0～8 |
| II speed | km/h | 0～17 |
| Engine model | SC7H180.2G3 | |
| Rated power | kW | 132 |
| Rated rotating speed | r/min | 1800 |
| Engine oil consumption | g/kW·h | ≤235 |
| Tyre size | 13/80-20 | |
| Tyre tread | Smooth | |
| Tyre qty' | Front 4 rear 5 | |
| Length ( watering) | mm | 4925 |
| Length(optional Spray oil) | mm | 5015 |
| Width | mm | 2530 |
| Height | mm | 3370 |
| Fuel tank capacity | L | 170 |
| Water thank capacity | L | 650 |
