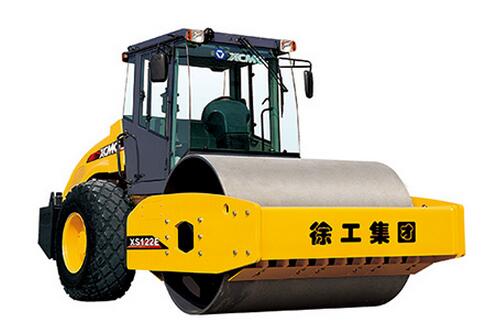

Vibratory compactor
Vibratory compactor
XS122E
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| item | Unit | Parameters |
| working paremeters | ||
| Static linear load | (N/cm) | 313 |
| Vibration frequency | (Hz) | 30/35 |
| theoretical Vibration | (mm) | 1.8/0.9 |
| Vibration force | (kN) | 280/190 |
| Compaction width | (mm) | 2130 |
| minimum ground clearance | (mm) | 400 |
| Driving performance parameters | ||
| Speed range | ||
| I | (km/h) | 0-5 |
| II | (km/h) | 0-11 |
| III | (km/h) | - |
| IV | (km/h) | - |
| Theoretical gradeability | - | 45% |
| minimum turning radius | (mm) | 6800 |
| wheel base | (mm) | 6800 |
| weight parameters | ||
| working weight | (kg) | 12000 |
| Distribution of driving wheel weight | (kg) | 5200 |
| Vibration wheel distribution weight | (kg) | 6800 |
| Size parameters | ||
| Overall dimensions (L*W*H) | (mm) | 5970×2300×3150 |
| engine | ||
| Model | - | YC4A125Z-T21 |
| rated speed | (r/min) | 2200 |
| rated power | (kW) | 92 |
| fuel consumption | (g/kW·h) | 205 |
