Vibratory compactor
Vibratory compactor

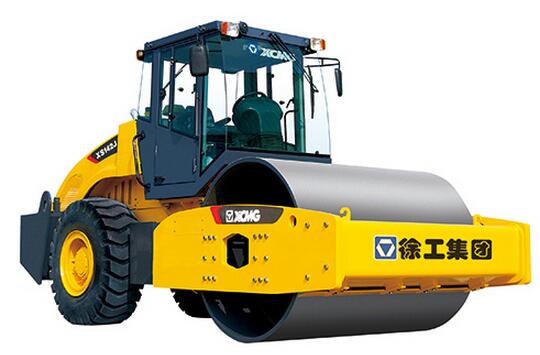

XS142J
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| item | Unit | Parameters |
| working paremeters | ||
| Static linear load | (N/cm) | 315 |
| Vibration frequency | (Hz) | 28 |
| theoretical Vibration | (mm) | 1.9/0.95 |
| Vibration force | (Kn) | 274/137 |
| Driving parameters | ||
| Speed range | ||
| front I | (km/h) | 2.7 |
| front Ⅱ | (km/h) | 4.8 |
| front Ⅲ | (km/h) | 10.5 |
| rear Ⅰ | (km/h) | 2.7 |
| rear Ⅱ | (km/h) | 4.4 |
| rear Ⅲ | (km/h) | - |
| Theoretical gradeability | (%) | 30 |
| minimum turning radius | (mm) | 6800 |
| The braking distance of driving | (m) | <4.6 |
| weight parameters | ||
| working weight | (kg) | 14000 |
| Distribution of driving wheel weight | (kg) | 7300 |
| Vibration wheel distribution weight | (kg) | 6700 |
| Size parameters | ||
| Overall dimensions (L*W*H) | (mm) | 6010×2340×3200 |
| wheel base | (mm) | 3040 |
| Compaction width | (mm) | 2130 |
| steering angle | (°) | ±33 |
| oscillating angle | (°) | ±11 |
| minimum ground clearance | (mm) | 431 |
| engine | ||
| model | - | SC5D125G2B1 |
| rated speed | (r/min) | 2200 |
| rated power | (Kw) | 92 |
| emissions | - | off-highway, Naitonal II emission standard |
