Vibratory compactor
Vibratory compactor

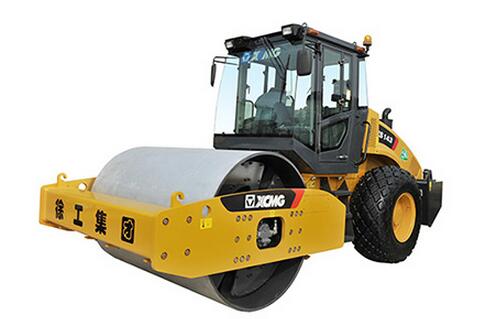

XS143
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| item | Unit | Parameters |
| working paremeters | ||
| Static linear load | (N/cm) | 385 |
| Vibration frequency | (Hz) | 28/35 |
| theoretical Vibration | (mm) | 1.86/0.88 |
| Vibration force | (kN) | 305/225 |
| Compaction width | (mm) | 2130 |
| minimum ground clearance | (mm) | 440 |
| Driving performance parameters | ||
| Speed range | ||
| I | (km/h) | 0-4.5 |
| II | (km/h) | 0-6.0 |
| III | (km/h) | 0-7.2 |
| IV | (km/h) | 0-12 |
| Theoretical gradeability | - | 40% |
| minimum turning radius | (mm) | 6415 |
| wheel base | (mm) | 6415 |
| weight parameters | ||
| working weight | (kg) | 14000 |
| Distribution of driving wheel weight | (kg) | 5800 |
| Vibration wheel distribution weight | (kg) | 8200 |
| Size parameters | ||
| Overall dimensions (L*W*H) | (mm) | 6200×2340×3200 |
| engine | ||
| Model | - | 6BTAA5.9-C |
| rated speed | (r/min) | 2200 |
| rated power | (kW) | 125 |
| fuel consumption | (g/kW·h) | 235 |
