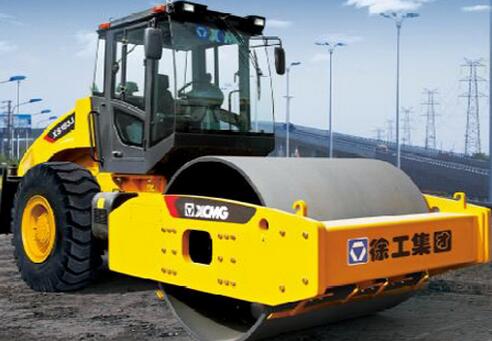

Vibratory compactor

XS183J

REQUEST A QUOTE

You have choose: Vibratory compactor - XS183J

*Region

*Country

*Your Name

*Email

*Mobile Number

*Verification Code See the verification code Click refresh!

item			Unit	Parameters
working weight			kg	18000
Distribution of driving wheel weight			kg	9000
Vibration wheel distribution weight			kg	9000
Static linear load			N/cm	422
Vibration frequency			Hz	28
theoretical Vibration			mm	1.9/0.95
Vibration force			kN	320/160
Speed range	forward	Ⅰ	km/h	2.78
		Ⅱ		5.43
		Ⅲ		11.51
	backward	Ⅰ		2.75
		Ⅱ		5.45
wheel base			mm	3180
Compaction width			mm	2130
Theoretical gradeability			%	30
minimum turning radius			mm	6500
Drum diameter			mm	1523
minimum ground clearance			mm	448
engine	model			SC7H160.3G2B
	rated speed		r/min	1800
	rated power		kW	118
Overall dimensions (LWH)			mm	6220×2300×3200
vibration system pressure			MPa	16
steering system pressure			MPa	16
