Vibratory compactor

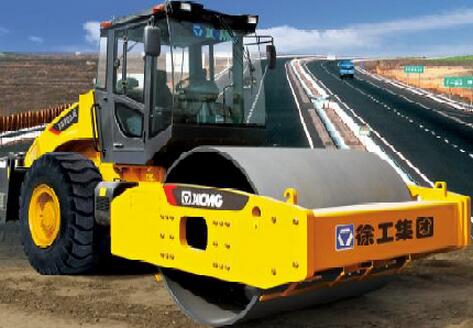

XS223JE

REQUEST A QUOTE

You have choose: Vibratory compactor - XS223JE

*Region

*Country

*Your Name

*Email

*Mobile Number

*Verification Code See the verification code Click refresh!

item			Unit	Parameters
working weight			kg	22000
Distribution of driving wheel weight			kg	11000
Vibration wheel distribution weight			kg	11000
Static linear load			N/cm	516
Vibration frequency			Hz	28/33
theoretical Vibration			mm	1.86/0.93
Vibration force			kN	374/290
Speed range	forward	Ⅰ	km/h	2.69
		Ⅱ		5.25
		Ⅲ		11.12
	backward	Ⅰ		2.66
		Ⅱ		5.27
wheel base			mm	3180
Compaction width			mm	2130
Theoretical gradeability			%	30
minimum turning radius			mm	6500
Drum diameter			mm	1600
minimum ground clearance			mm	448
engine	model			SC8DK185.2G3
	rated speed		r/min	1800
	rated power		kW	136
Overall dimensions (LWH)			mm	6220×2430×3200
vibration system pressure			MPa	35
steering system pressure			MPa	16
