Vibratory compactor
Vibratory compactor

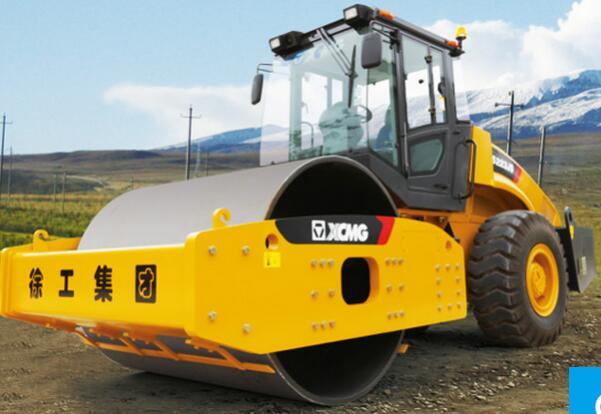

XS223JS
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| item | Unit | Parameters | ||
| working weight | kg | 22000 | ||
| Distribution of driving wheel weight | kg | 11000 | ||
| Vibration wheel distribution weight | kg | 11000 | ||
| Static linear load | N/cm | 516 | ||
| Vibration frequency | Hz | 28/33 | ||
| theoretical Vibration | mm | 1.86/0.93 | ||
| Vibration force | kN | 374/290 | ||
| Speed range | Ⅰ | km/h | 2.95 | |
| Ⅱ | 5.78 | |||
| Ⅲ | 9.4 | |||
| wheel base | mm | 3180 | ||
| Compaction width | mm | 2130 | ||
| Theoretical gradeability | % | 30 | ||
| minimum turning radius | mm | 6500 | ||
| Drum diameter | mm | 1600 | ||
| minimum ground clearance | mm | 448 | ||
| engine | model | SC8DK185.2G3 | ||
| rated speed | r/min | 1800 | ||
| rated power | kW | 136 | ||
| Overall dimensions (L*W*H) | mm | 6220×2430×3200 | ||
| vibration system pressure | MPa | 35 | ||
| steering system pressure | MPa | 16 | ||
