Vibratory compactor
Vibratory compactor

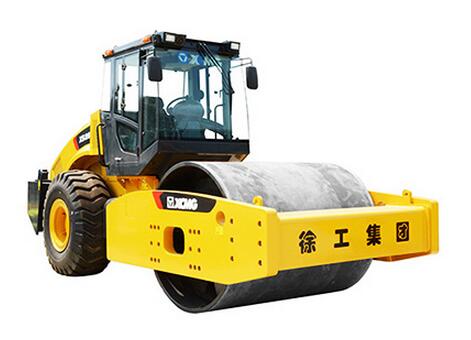

XS263E
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| item | Unit | Parameters | |||
| weight | Maximum working weight | (kg) | 26000 | ||
| The front wheel distribution weight | (kg) | 17000 | |||
| The rear wheel distribution weight | (kg) | 9000 | |||
| engine | Model | SC9DK220.1G | |||
| rated power | (kW) | 162 | |||
| rated speed | (r/min) | 2000 | |||
| compaction capacity | Static linear load | (N/cm) | 784 | ||
| vibrational frequency | high frequency | (Hz) | 32 | ||
| Low frequency | (Hz) | 27 | |||
| Nominal Vibration | Large (low frequency) | (mm) | 1.9 | ||
| Small (high frequency) | (mm) | 0.95 | |||
| Vibration force | Large (low frequency) | (kN) | 410 | ||
| Small (high frequency) | (kN) | 300 | |||
| Driving capacity | speed | Ⅰ | (km/h) | 0～3.4 | |
| Ⅱ | (km/h) | 0～5.0. | |||
| Ⅲ | (km/h) | 0～5.2 | |||
| Ⅳ | (km/h) | 0～10.4 | |||
| Outside the minimum turning radius | (mm) | 6800 | |||
| Theoretical gradeability | (%) | 50 | |||
| steering angle | (°) | ±33 | |||
| oscillating angle | (°) | ±10 | |||
| size | complete machine size | length | (mm) | 6877 | |
| width | (mm) | 2430 | |||
| height | (mm) | 3330 | |||
| wheel base | (mm) | 3460 | |||
| minimum ground clearance | (mm) | 508 | |||
| Vibration wheel diameter | (mm) | 1600 | |||
| Vibration wheel width | (mm) | 2170 | |||
