Wheel loader
Wheel loader

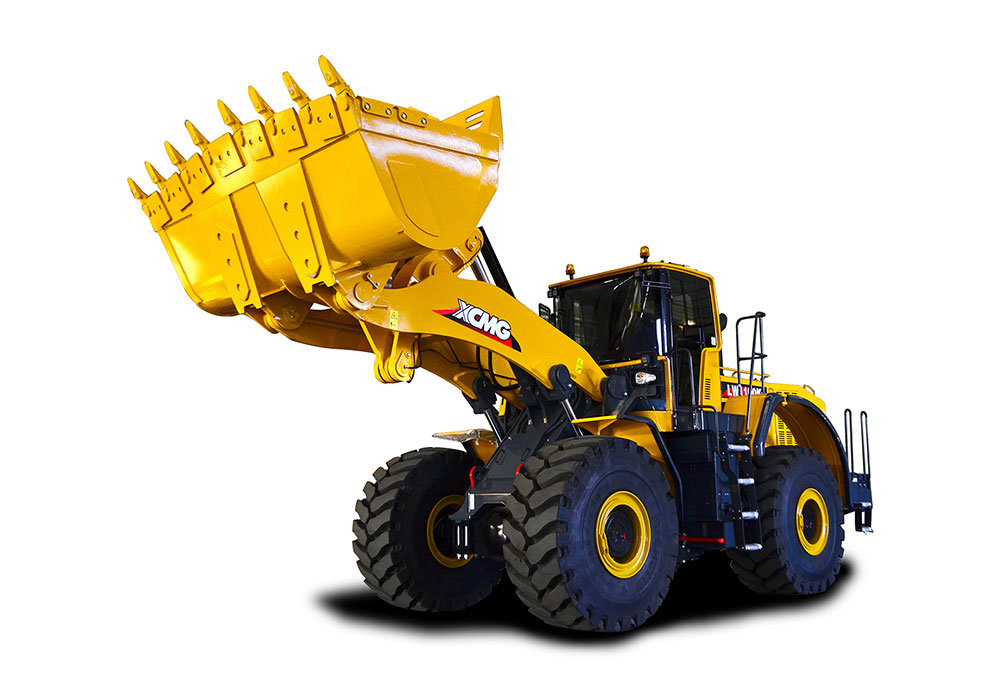

LW1100KN(CE)
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Model | LW1100KN | ||
| Weight | Type of working device | 5.5m3 standard bucket | |
| Operating weight (kg) | 35000 | ||
| Characteristics | Bucket capacity (full-load) (m3) | 5.5 | |
| Tipping load (kg) | 22000 | ||
| Traveling speed | |||
| 1st forward gear (km/h) | 6.2 | ||
| 2nd forward gear (km/h) | 11.5 | ||
| 3rd forward gear (km/h) | 17.5 | ||
| 4th forward gear (km/h) | 35.7 | ||
| 1st reverse gear (km/h) | 6.2 | ||
| 2nd reverse gear (km/h) | 11.5 | ||
| 3rd reverse gear (km/h) | 24.8 | ||
| Maximum gradeability (°) | >25 | ||
| Maximum breakout force kN | 290 | ||
| Lifting time of boom s | ≤7 | ||
| Total cycling time s | ≤13.5 | ||
| Rear axle swing angle (°) | ±12 | ||
| Dumping angle at any position (°) | ≥45 | ||
| Bucket automatic leveling capability | Yes | ||
| Minimum turning radius | Center of outer wheel (mm) | 6308 | |
| Outer side of bucket at transport position (mm) | 7723 | ||
| Dimensions | Overall length (mm) | 10139 | |
| Overall width (chassis) (mm) | 3201 | ||
| Bucket width (mm) | 3639 | ||
| Overall height (top of cab) (mm) | 4028 | ||
| (fully lifted bucket) (mm) | 6585 | ||
| Wheelbase (mm) | 3700 | ||
| Boom hinge pin height (with bucket fully lifted) (mm) | 4730 | ||
| Dumping height (bucket tooth edge) (mm) | 3450 | ||
| Dumping reach (bucket tooth edge) (mm) | 1494 | ||
| Dumping angle at highest position (°) | 45 | ||
| Digging depth (at 10º inclination angle) (mm) | 100 | ||
