Wheel loader
Wheel loader

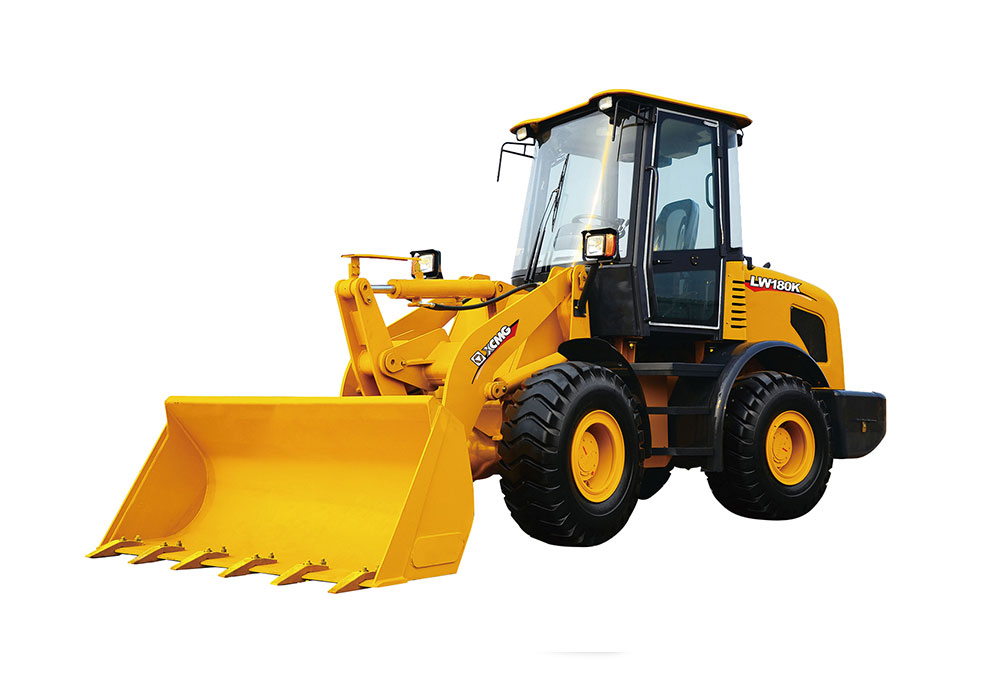

LW180K(CE)
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Overall dimensions | |||||
| Overall 1ength (bucket on the ground) | 5980 mm | ||||
| Bucket width | 2060 mm | ||||
| Overall height | 3200 mm | ||||
| Wheel base | 2300 mm | ||||
| Tread | 1550 mm | ||||
| Min. ground clearance | 298 mm | ||||
| Specification | |||||
| Rated capacity | 1800 kg | ||||
| Bucket volume | 0.9～1.1 m3 | ||||
| Operating weight | 6.2 t | ||||
| Traveling speeds () | |||||
| Ⅰ | 9 km/h | ||||
| Ⅱ | 26 km/h | ||||
| Reverse Ⅰ | 9 km/h | ||||
| Reverse Ⅱ | 26 km/h | ||||
| Max. tractive force | 45 KN | ||||
| Max. climbing gradient | 28 º | ||||
| Max. dumping angle | 45 º | ||||
| Max. dumping height | 2680 mm | ||||
| Dumping reach | 900 mm | ||||
| Overturn angle of bucket | |||||
| The lowest position | 45 º | ||||
| The highest position | 48.5º | ||||
| Bucket automatic leveling function | yes | ||||
| Max. Breakout force | 55 KN | ||||
| Total cycling time | ≦8.5S | ||||
| Min. Turning radius | 5180mm | ||||
| Center of tyre | 4470mm | ||||
| Turning angle of the frames | 35±1 º | ||||
| Oscillating angle of the rear axle | ±10 º | ||||
| Engine | Rated Power Rated Speed Maximum Torque | ||||
| YC4D80-T3A1 | 58 2300 305/1400~1600 | ||||
| Transmission system | |||||
| Torque converter | |||||
| Model | YJ280-4D | ||||
| Type | 1 stage, 3-elements | ||||
| Cyclic diameter | 280 mm | ||||
| Conversion coefficient | K=3.19 | ||||
| Cooling method | Oil cooling-pressure circulating type | ||||
| Oil inlet pressure | 0.6～0.65Mpa | ||||
| Oil outlet pressure | 1.3～1.5Mpa | ||||
| (2).Transmission | |||||
| Model | 2B280 | ||||
| Type | Electro-hydraulic shift fixed axis type | ||||
| Gear number | 2 forward and 2 reverse | ||||
| Ⅰ | 2.091 | 2.186 | |||
| Ⅱ | 0.686 | 0.7177 | |||
| Transmission working oil pressure | 1.2-1.4MPa | ||||
| Displacement of transmission oil pump | 20 ml/r | ||||
| Front and rear axle | |||||
| Speed ratio | 6.667 | ||||
| Hub reducer | |||||
| Type | One stage-planetary deceleration | ||||
| Speed ratio | 3.478 | ||||
| Tyres | |||||
| Tyre specification | 16/70-20 | ||||
| Inflating pressure | Fore tyre: 0.30～0.32 MPa | ||||
| Rear tyre: 0.28～0.30 MPa | |||||
| Braking system | |||||
| Foot brake | Oil disc braking on 4 wheels | ||||
| Braking air pressure | 784-833 KPa | ||||
| Hand brake | Clamp disc brake | ||||
| Steering system | |||||
| System pressure | 14 MPa | ||||
| Max turning angle | ±35º | ||||
| Hydraulic system of the working device | |||||
| System pressure | 16 MPa | ||||
| Oil liquid volume | |||||
| Fuel (diesel) | 120 L | ||||
| Lubricating oil of engine | 11 L | ||||
| T/M & T/C oil | 22 L | ||||
| Hydraulic reservoir | 110 L | ||||
| Axle | 10 L | ||||
