Wheel loader
Wheel loader

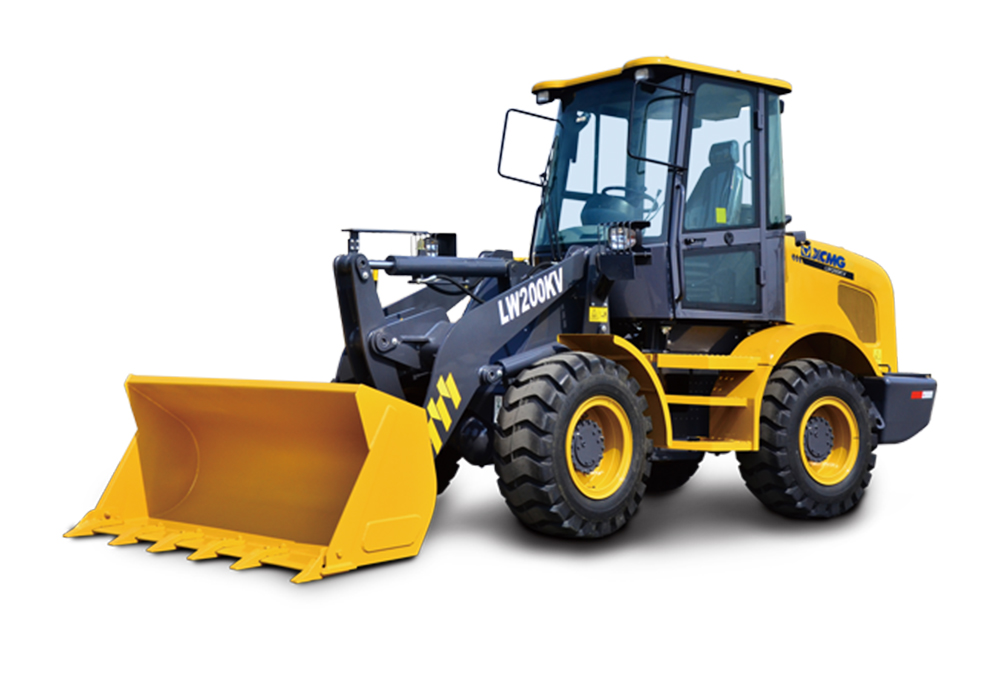

LW200KV
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Description | Specification | Unit |
| Model | LW200KV | |
| Rated operating load | 2000 | kg |
| Bucket capacity | 0.9-1.1 | m3 |
| Machine weight | 6300 | kg |
| Dump clearance at maximum lift | 2530-2950 | mm |
| Reach at maximum lift | 860-980 | mm |
| Wheel base | 2300 | mm |
| Tread | 1550 | mm |
| Max.breakout force | 60 | kN |
| Hydraulic cycle time-raise | 5 | s |
| Total hydraulic cycle time | 9 | s |
| Min. turning radius over tyres | 4470 | mm |
| Articulation angle | 35 | ° |
| Gradeability | 28 | ° |
| Tyre size | 16/70-20 | |
| Overall machine dimension LxWxH | 6045x2060x2950 | mm |
| Model | LR4B3ZU24/0662 | |
| Rated Power/Speed | 66.2/2400 | kW/rpm |
