Wheel loader
Wheel loader

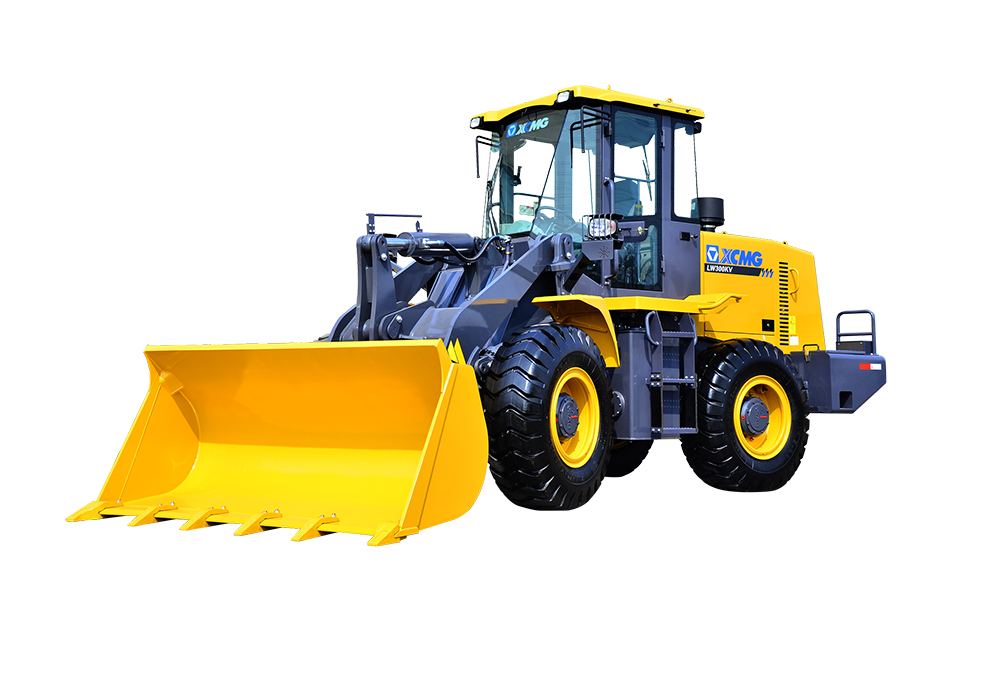

LW300KV
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Description | Specification | Unit |
| Rated operating load | 3000 | kg |
| Bucket capacity | 1.5 〜2.5 | m3 |
| Machine weight | 10600±200 | kg |
| Dump clearance at maximum lift | 2770-3260 | mm |
| Reach at maximum lift | 1010-1210 | mm |
| Wheel base | 2900 | mm |
| Tread | 1850 | mm |
| Height of hinge at maximum lift height | 3839 | mm |
| Working height(fully lifted) | 4870 | mm |
| Max.breakout force | 130 | kN |
| Max.horse power | 95 | kN |
| Hydraulic cycle time-raise | 4.9 | s |
| Total hydraulic cycle time | 8.8 | s |
| Min. turning radius over tyres | 5170 | mm |
| Articulation angle | 38±1 | ° |
| Gradeability | 28 | ° |
| Tyre size | 17.5-25-12PR | |
| Overall machine dimension LxWxH | 7245x2482x3320 | mm |
| Model | WP6G125E333/SC7H125.1G3 | |
| Emission standards | EURO III | |
| Rated Power/Speed | 92/2000 | kW/rpm |
| Fuel Tank | 165 | L |
| Hydraulic Tank | 165 | L |
