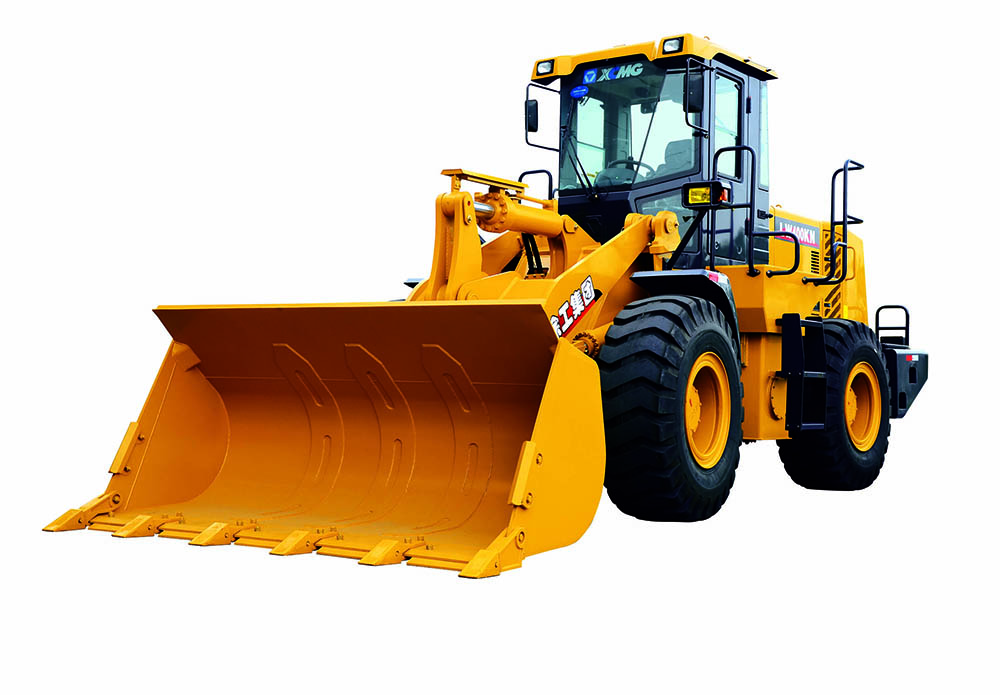

Wheel loader
Wheel loader
LW400KV
REQUEST A QUOTE
- FEATURES
- PARAMETERS
The design of the machine is more reasonable, adopting hydrodynamic-mechanical transmission and four-wheel drive, and featuring large driving force and digging force; With the small turning radius, the machine is portable and agile, which is applicable to the operation in narrow space.
The design of the machine is more reasonable, adopting hydrodynamic-mechanical transmission and four-wheel drive, and featuring large driving force and digging force; With the small turning radius, the machine is portable and agile, which is applicable to the operation in narrow space.
| Item | Unit | LW400KV |
| Rated bucket capacity | (m³) | 2.4 |
| Rated load capacity | (kg) | 4000 |
| Rated power | (kW) | 125 |
| Total weight | (kg) | 14500 |
| Dumping height | (mm) | 2840 |
| Max. digging force | (kN) | 120 |
| Rated load | 1.8t |
| Rated load | 2350/2700/3000t |
| Dumping distance | 850 mm |
| Lifting time | ≤5s |
| Total time of three devices | ≤10s |
| Digging force | 50kN |
| Articulated angle | 35±1 |
| Wheeelbase | 2200 mm |
| Tread | 1490 mm |
| Speed | |
| 6/6km/h | |
| 24/24km/h | |
| Diesel engine | Luotuo |
| Model | LR4105G72DA |
| Type | Natural intake |
| Rated power | 60kW |
| Rated rotary speed | 2400r/min |
| Dimension: (Length×Width×Height) | 5520×1960×2850mm |
| Overall weight | 6.0t |
| Tyre specification | 16/70-20 |
| Overall dimensions(L×W×H) | 5520×1960×2850mm |
| rated weight | 2t |
| Dumping clearance | 2350/2700/3000mm |
| Dumping reach | 900mm |
| Breakout fore | 50KN |
| Wheel base | 2200mm |
| Tread | 1490mm |
| Model | LR4108G75 |
| Rated power | 64kw |
| Rated speed | 2400r/min |
| Ist(F/R) | 6/6km/h |
| 2nd(F/R) | 24/24km/h |
| Total cycling time | <10s |
| Tyres | 16/70-20 |
| Operating weight | 6t |
