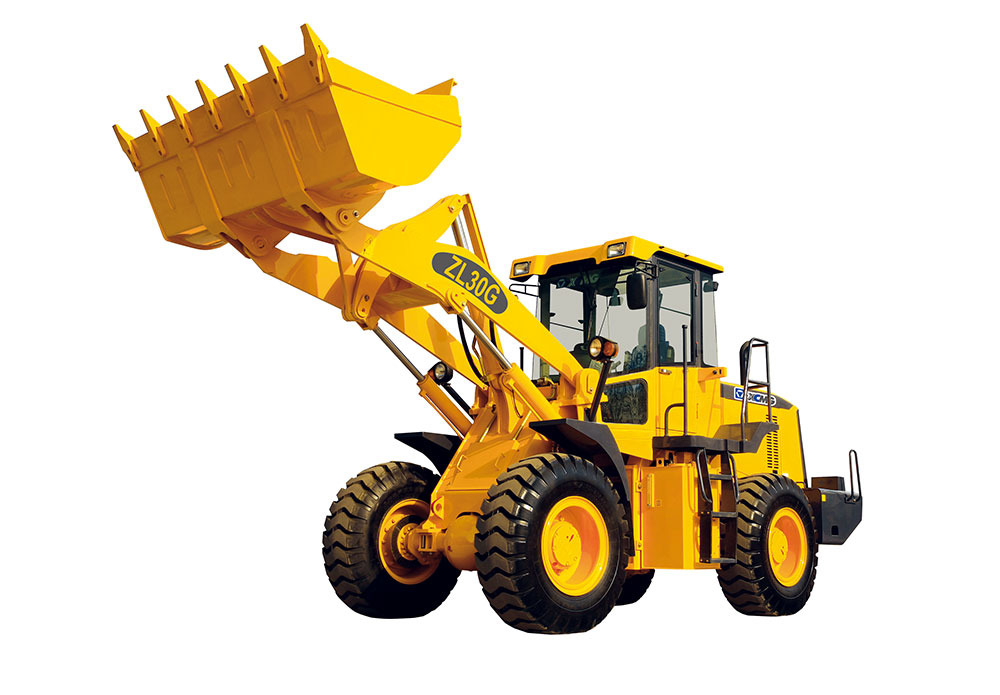

ZL30G(CE)
REQUEST A QUOTE
- FEATURES
- PARAMETERS
| Overall dimensions | |||||
| Overall 1ength (bucket on the ground) | 7250 mm | ||||
| Bucket width | 2470 mm | ||||
| Overall height | 3290 mm | ||||
| Wheel base | 2900 mm | ||||
| Tread | 1850 mm | ||||
| Min. ground clearance | 370 mm | ||||
| Specification | |||||
| Rated capacity | 3000 kg | ||||
| Bucket volume | 1.8 m3 | ||||
| Operating weight | 10.8 t | ||||
| Traveling speeds () | |||||
| Ⅰ | 8 km/h | ||||
| Ⅱ | 13 km/h | ||||
| Ⅲ | 27 km/h | ||||
| Ⅳ | 36 km/h | ||||
| Reverse Ⅰ | 8 km/h | ||||
| Reverse Ⅱ | 13 km/h | ||||
| Reverse Ⅲ | 27 km/h | ||||
| Max. tractive force | 90 KN | ||||
| Max. climbing gradient | 28 º | ||||
| Max. dumping angle | 45 º | ||||
| Max. dumping height | 2930 mm | ||||
| Dumping reach | 1000 mm | ||||
| Overturn angle of bucket | |||||
| The lowest position | 43 º | ||||
| The highest position | 57 º | ||||
| Bucket automatic leveling function | yes | ||||
| Max. Breakout force | 130 KN | ||||
| Total cycling time | 10 S | ||||
| Min. Turning radius | |||||
| Outside of the bucket | 5170 mm | ||||
| Turning angle of the frames | 38±1 º | ||||
| Oscillating angle of the rear axle | ±12 º | ||||
| Engine | Rated Power Rated Speed Maximum Torque | ||||
| 1006D-6TA92 | 92 2300 460/1400~1600 | ||||
| Transmission system | |||||
| Torque converter | |||||
| Model | YJ315X-2 | ||||
| Type | 1 stage, 3-elements, single turbo | ||||
| Cyclic diameter | 315 mm | ||||
| Conversion coefficient | K=4.458 | ||||
| Cooling method | Oil cooling-pressure circulating type | ||||
| Oil inlet pressure | 0.3~0.45Mpa | ||||
| Oil outlet pressure | 0.2~0.3Mpa | ||||
| (2).Transmission | |||||
| Model | BS428(YD 13004059) | ||||
| Type | Fixed shaft type, power shift | ||||
| Gear number | 4 forward and 3 reverse | ||||
| Ⅰ | 3.91 | 3.91 | |||
| Ⅱ | 2.304 | 2.304 | |||
| Ⅲ | 0.964 | 0.964 | |||
| Ⅳ | 0.617 | ||||
| Transmission working oil pressure | 1.5-1.7MPa | ||||
| Transmission oil pump model | CBN-E46 | ||||
| Displacement of transmission oil pump | 46 ml/r | ||||
| Front and rear axle | |||||
| Speed ratio | 5.286 | ||||
| Hub reducer | |||||
| Type | One stage-planetary deceleration | ||||
| Speed ratio | 3.882 | ||||
| Tyres | |||||
| Tyre specification | 17.5-25 | ||||
| Inflating pressure | Fore tyre: 0.32-0.35 MPa | ||||
| Rear tyre: 0.28-0.30 MPa | |||||
| Braking system | |||||
| Foot brake | Oil disc braking on 4 wheels | ||||
| Braking air pressure | 784-833 KPa | ||||
| Hand brake | Clamp disc brake | ||||
| Steering system | |||||
| System pressure | 12 MPa | ||||
| Max turning angle | ±38º | ||||
| Hydraulic system of the working device | |||||
| System pressure | 16 MPa | ||||
| Oil liquid volume | |||||
| Fuel (diesel) | 180 L | ||||
| Lubricating oil of engine | 20 L | ||||
| T/M & T/C oil | 32 L | ||||
| Hydraulic reservoir | 170 L | ||||
| Axle | 25 L | ||||
