Self-loading truck mixer
Self-loading truck mixer

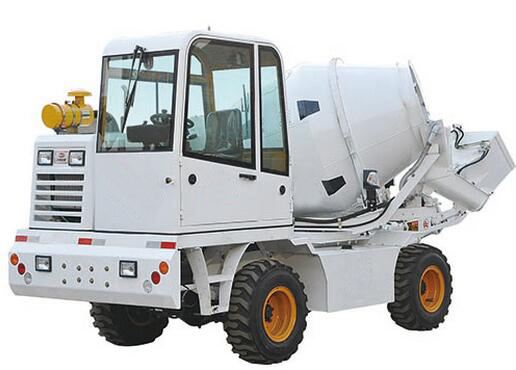

SLM12R
REQUEST A QUOTE
- FEATURES
- PARAMETERS
· Italy technology, Self Propelled Concrete Mixing System
· Easy operating control
· High efficiency
· Mixer and Loader joint together perfectly
· One year warranty
· Two directions discharge materials
DIESEL ENGINE
Model: YN27GBZ
Total displacement, no Cylinders: 2700cc－4 in line
Injection: direct with mechanical control
Cooling: water, dry air filter
Max power: 55Kw（75Hp）
Max torque: 237Nm@2000rpm
ELECTRIC SYSTEM
Alternator: 28V--500Wa (18A)
Battery: 2×12V--60AH (272A)
Road light system, rear working lights
STEERING
Two steering wheels, Assisted by means of load-sensing power steering on 2 steering wheels
4X4 FOUR-WHEEL DRIVE
hydraulic torque converter transmission with open Gear oil pump and reverse gear control on the steering wheel
Electro-hydraulically controlled mechanical gearbox for “working speed” and “road transfer speed"
Speed：2 forward gears 2 reverse gears
Ist 0 - 70 Km/h 0 - 70 Km/h
IInd 7-20 Km/h 7 - 20 Km/h
AXLES AND WHEELS
Front wheel is steering with planetary reduction gears on the Isuzu Axle with flanged gearbox
Rear axle is oscillating（± 28°）with planetary reduction gears
Tires: 12-165-12PR,Max L: AD2540kg, 450kPa RIM:975
BRAKES
Internal wheel hub disc service and emergency brakes acting on the 4 wheels, activation with mini servo pump on independent dual circuit
Negative type parking brake, with internal wheel hub discs on the front axle
WATER SYSTEM
24V “Self-priming” volumetric water pump with quick-suction
Max capacity: 90 liters/min
Two tanks with a total capacity of 2*230 liters
Water feeding to the drum controlled by means of electromagnetic flow meter and feed liter reading on the cabin display Water pump activation from the driver's seat
Washing vehicles outside by water blast gun via high pressure water pump
MIXING AND UNLOADING
Double-cone drum with double-spiral mixing screws and convex bottom
Geometrical drum volume: 2600 liters
Drum rotation speed: 15 rpm
Concrete produced as : 1.2 m³
Counter frame mounted on “heavy-duty” ball fifth wheel, with 270° hydraulic rotation and automatic locking by means of hydraulic brake Drum rotation by means of a gear pump with variable flow rate and an orbital hydraulic motor in open circuit with adjustable handle control manually positioned in the cabin and at the rear of the machine
Drum raising up to the horizontal position by means of 2 double-acting jacks
Unloading chute with mechanical tilting by means of one handle controlled and 180° rotation, independent from the mixing drum inclination
Removable chute if unloading from hopper
2 unloading chute extensions provided as standard equipment
EQUIPMENT HYDRAULIC SYSTEM
Gear pump: Dehong (brand)
Max flow rate: 20/40 liters/min
Maximum pressure: 16MPa
3-Handles controlled with multi-function joystick
Aluminum heat exchanger for hydraulic oil cooling
Pressurized open-circuit intake with oil filter replaceable from the outside
LOADER
Auto weighting function, Loading device with Teeth bucket and lifting arms controlled by double-acting hydraulic cylinders Automatic unloading hatch driven by a mechanical lever
Volumetric capacity: 270 liters
Number of loading times: around 5
CAB
Closed cab with heating system,
Tilting front window, Anatomic seat with flexible suspension and height adjustment,
SERVICE REFILL CAPACITIES
Fuel tank: 100 liters
Total hydraulic system capacity: 100 liters
Engine oil: 16 liters
WEIGHTS
Operating weight 4,800 kg
Max gross weight: 7,680 kg
load-carrying capacity: 2,880 kg
DIMENSIONA
Length*Width*Height....6030 × 2180 × 2250 mm
